01 Chassis

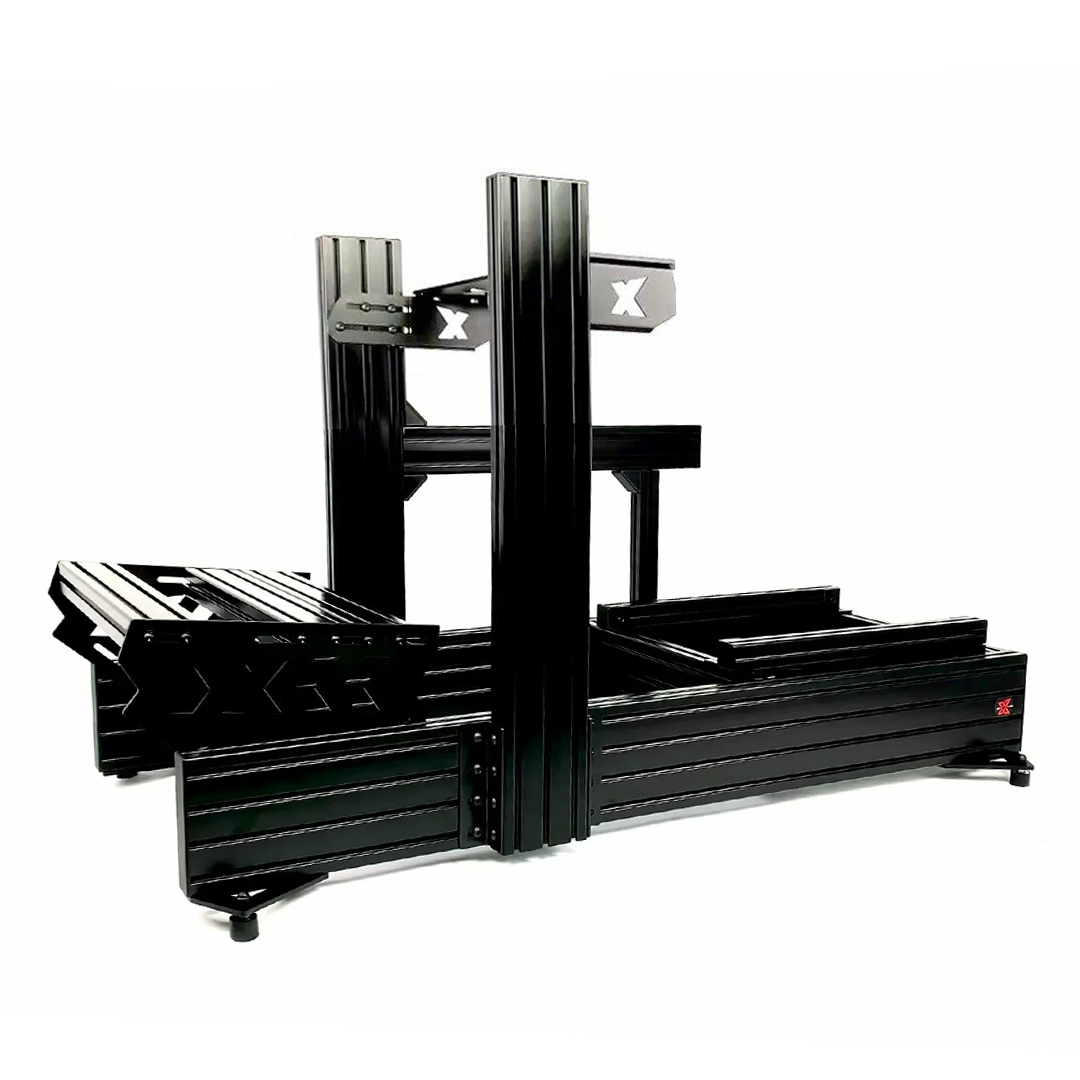

SimXPro XT160 Sim Racing Cockpit
- Free shipping on orders over €100
- 5-year cockpit warranty
- Bundle discount included in the price

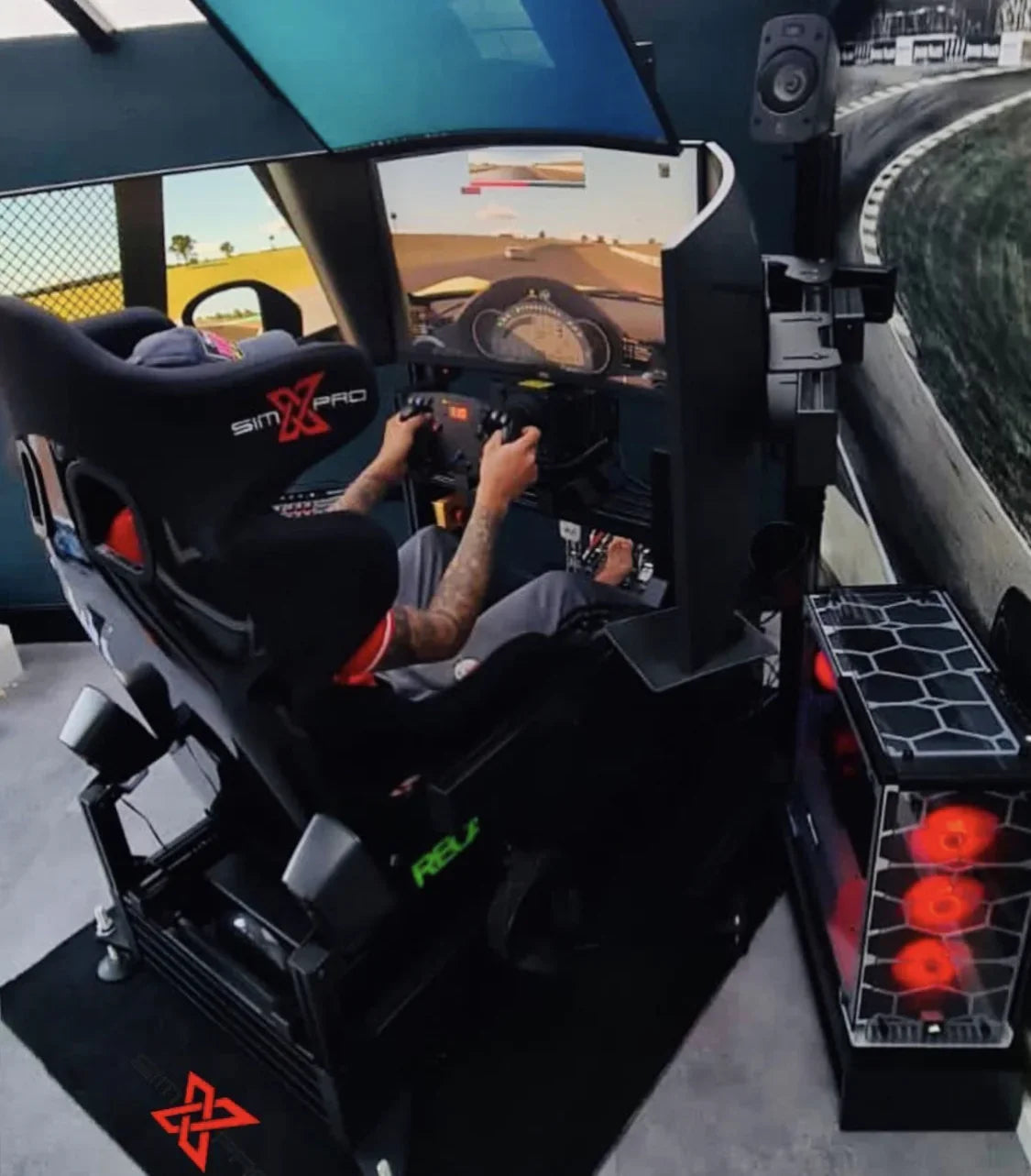

02 In action
XT160
-
Racing level
Pro level
Built for competitive racing.
Racing level: High-End / Professional
-
Assembly
Easy assembly
Race-ready in about 50% faster assembly with CoreBolt™ compared with the previous XT160 mounting system, with a filmed step-by-step guide.
50% faster assembly with CoreBolt™ compared with the previous XT160 mounting system -
Wheelbase
Direct-drive ready
Rock solid with wheelbases up to 30 Nm+.
30 Nm+ -
Warranty
Built to last
5-year cockpit warranty.
-
Shipping
Free shipping
On every order over €100, shipped from the Netherlands.
-
Support
Real sim racers
Help from people who race themselves, usually within 2 hours.
03 Why this product
Why the XT160?
Choose the XT160 when maximum structural rigidity, fast precision assembly and a wide adjustment range matter most. Its 40 × 160 mm construction uses the CoreBolt™ internal mounting system with concealed, precision-positioned connections, reducing assembly time by approximately 50% and eliminating the need to measure or level the main frame during positioning.
04 Specs
The numbers.
- Recommended wheelbase
- 30 Nm+
- Recommended pedals
- 300 kg+ pedal force; high-end load-cell and hydraulic pedal systems
- Racing level
- High-End / Professional
- Construction
- Extreme heavy-duty 40 × 160 mm aluminium-profile cockpit with SimXPro CoreBolt™ precision-positioned internal mounting system
- Profile size
- 40 × 160 mm (40160) main base profiles
- Material
- Aluminium and Harded Steel
- Finish
- Industrial Black Powder Coating
- Pedal deck
- New Extended Profile Pedal Deck with integrated heel rest included as standard
- Length
- 135 cm
- Width
- 66 cm
- Height
- 82 cm
- Cockpit weight
- 62 kg
- Space needed
- Approx. 135 × 66 cm cockpit footprint excluding seat; approx. 82 cm cockpit height; allow additional room for the seat, driver access and monitor or motion setup
- Max. driver weight
- 160 kg
- Max. driver height
- 200 cm
Full product description
Maximum rigidity. Ultimate control. The SimXPro XT160 is a top tier sim racing cockpit built for extreme direct drive torque, heavy duty braking, and long term upgrade freedom.
Overview
The SimXPro XT160 is the flagship aluminium profile sim racing rig for drivers who demand unmatched strength, full adjustability, and a zero compromise driving feel. Built from ultra heavy 40x160 aluminium profiles and the new precision-positioned SimXPro CoreBolt™ internal mounting system, this racing simulator cockpit is engineered to stay solid under the most extreme forces, including high torque wheelbases, hydraulic pedal sets, and full motion platforms.
Maximum rigidity for demanding hardware
The XT160 is designed to minimise flex under any condition. The massive 40x160 profile structure and internal CoreBolt™ connections deliver a stable base for consistent wheel control and pedal precision, especially when running stronger direct drive systems and heavy brake pressure.
New CoreBolt™ Mounting System
The new SimXPro CoreBolt™ mounting system introduces a completely new way of assembling the XT160.
Instead of traditional external corner brackets for the main chassis connections, CoreBolt™ creates an extremely strong internal connection using concealed bolts. The bolts are tightened through precision-drilled CoreBolt holes in the profiles, creating a clean and rigid connection from inside the structure.
Because every CoreBolt™ connection point is precision-positioned during manufacturing, the main frame components automatically align in their intended position during assembly. No measuring tape or spirit level is required to position and align the main frame.
The result is a cleaner cockpit with fewer visible brackets and bolts, together with a significantly faster and more straightforward assembly process.
By replacing the traditional main chassis corner-bracket connections with CoreBolt™, the assembly time of the XT160 has been reduced by approximately 50%.
Precision positioned. Internally connected. Half the assembly time.
Want to see CoreBolt™ in action? Check the XT160 assembly video for the complete installation process.
New Flat-to-Front Mount™
The XT160 now comes standard with the new SimXPro Flat-to-Front Mount™, replacing the need to choose between a separate front mount or flat wheeldeck.
One mount. Many options.
The Flat-to-Front Mount™ is supplied with a conversion plate that allows the mount to be easily converted from a front-mount configuration to a flat-mount configuration. Everything required is included as standard.
The system supports a wide range of wheelbase mounting patterns, both flat and front, without compromising the strength or adjustability of the mount.
The Flat-to-Front Mount™ also offers an increased range of angle adjustment compared with traditional wheelbase mounting solutions, allowing you to fine-tune the position and angle of your wheelbase to your preferred driving position.
The side profiles can be installed in two orientations. Choose a clean flat outer surface or rotate them to show the profile channels, depending on the look you prefer for your cockpit.
No separate wheeldeck. No additional front mount. Everything you need is included with the XT160.
Key features and what is included
- 40x160 aluminium profile chassis for the highest structural rigidity
- New SimXPro CoreBolt™ internal mounting system with concealed bolts and precision-positioned connection points
- New SimXPro Flat-to-Front Mount™ included as standard, complete with conversion plate and support for a wide range of flat and front wheelbase mounting patterns
- New Extended Profile Pedal Deck included with a larger pedal mounting area, increased angle and extension adjustment, and integrated heel rest as standard
- Shifter profile mount included with 58 cm extension
- Adjustable feet included for floor levelling and grip
- Industrial black powder coating for a premium, durable finish
New Extended Profile Pedal Deck
The XT160 is equipped with the upgraded SimXPro Extended Profile Pedal Deck, developed to provide an even wider range of pedal adjustment and driving positions.
The enlarged pedal deck provides more mounting space for larger pedal sets, while the increased angle adjustment and extended longitudinal adjustment range make it easier to position the pedals precisely for your preferred seating position.
An integrated heel rest is included as standard, creating a complete pedal platform and helping you achieve a precise and comfortable pedal setup.
The increased adjustment range also allows the XT160 to be configured beyond a traditional GT position, including lower and more extended LMP2 and Formula-style driving positions.
Built for full integration
As the flagship of the SimXPro ecosystem, the XT160 is built for clean expansion. Add triple monitor mounts, keyboard trays, motion systems, and custom mounting solutions without rebuilding your cockpit. The aluminium profile chassis follows the modular principles many racers associate with an 80 20 or 8020 style profile rig, with SimXPro finishing and fit.
Why choose the SimXPro XT160?
- Designed to eliminate flex under demanding racing loads
- Supports direct drive wheelbases, hydraulic pedals, and motion systems
- Modular structure for long term upgrades without structural limits
- Premium look and feel with precise component alignment
- The strongest chassis in the SimXPro range for elite level simulation
Built like a machine and made for racers. If you want the ultimate sim racing rig foundation, the SimXPro XT160 is it.
Wheelbase
Pedals
Monitor
Shifter and handbrake
Seat
06 In the box and assembly
From box
to first lap.
No figure it out yourself. Every build, adjustment and upgrade is filmed step by step, so you can set up and adjust your rig yourself.
SimXPro video library
Build it. Tune it.
Fix it. Yourself.
Assembly manuals, product showcases and community reviews for every SimXPro rig, in one place. New videos are added all the time.
In the box
- 01Heavy duty aluminum profile frame (XT160 profile pack)
- 02CoreBolt™ internal mounting hardware
- 03Flat-to-Front Mount™ with conversion plate
- 04New Extended Profile Pedal Deck with integrated heel rest
- 05Extended shifter mount
- 06Bolts, nuts, T nuts, slides, washers
- 07End caps for visible profiles
- 08Cover caps for visible hardware
- 09Step-by-step assembly guide with pre-packed hardware bags for each step.
- Assembly time
- Approx. 50% faster assembly with CoreBolt™ compared with the previous XT160 mounting system
- Ships in
- 3 boxes
Before you start
Support guides
Made up your mind? Pick your options and add it to your cart.
Back to product07 Complete your rig
What other sim racers added:
What would you
want to add?
SimXPro Keyboard Tray SALE (Minor Cosmetic Damage Possible)
In stockCurrently out of stock
SimXPro DD Front Mount Universal 580 600 mm
In stockCurrently out of stock
08 Top brands we sell
We stock the best brands in simracing.
Tap a brand for its popular products
Top brand 01This brand
Fanatec
Direct drive for PC and console. From Gran Turismo DD Pro to ClubSport.
Known for · Wheelbases · Wheels · Pedals
Popular Fanatec
View allFree shipping on orders over €100
Top brand 02This brand
Simucube
Finnish high-end direct drive. Smooth, precise and built to last.
Known for · Direct drive · ActivePedal · Wheels
Popular Simucube
View allFree shipping on orders over €100
Top brand 03This brand
MOZA
One ecosystem from R3 to R21. Also as complete SimXPro cockpit bundles.
Known for · Wheelbases · Wheels · Pedals
Popular MOZA
View allFree shipping on orders over €100
Top brand 04This brand
Sensit!
Seat haptics. Feel every kerb, gear shift and lock-up through your seat.
Known for · Seat haptics
Popular Sensit!
View allFree shipping on orders over €100
Top brand 05This brand
Heusinkveld
Dutch-engineered pedals, shifters and handbrakes. Built for consistency.
Known for · Pedals · Shifters · Handbrakes
Popular Heusinkveld
View allFree shipping on orders over €100
Top brand 06This brand
Simagic
Alpha EVO direct drive, P-series pedals and GT and Formula wheels.
Known for · Wheelbases · Wheels · Pedals
Popular Simagic
View allFree shipping on orders over €100
Top brand 07This brand
D-BOX
FIA-licensed motion and haptics. Feel every bump, kerb and weight shift.
Known for · Motion systems · Haptics
Popular D-BOX
View allFree shipping on orders over €100
09 Questions and support
Answers before you buy.
01
What is CoreBolt™?
CoreBolt™ is the new SimXPro internal mounting system used for the main XT160 chassis connections. Concealed bolts are tightened through precision-drilled CoreBolt holes in the profiles, creating a strong and clean internal connection.
02
Do I need to measure and level the XT160 frame during assembly?
The main CoreBolt™ connection points are precision-positioned during manufacturing, so no measuring tape or spirit level is required to position and align the main frame.
03
How much faster is the new XT160 to assemble?
CoreBolt™ replaces the traditional main chassis corner-bracket connections and reduces XT160 assembly time by approximately 50% compared with the previous mounting system.
04
Where can I see how CoreBolt™ is installed?
Check the XT160 assembly video for the complete CoreBolt™ installation process.
05
What wheelbase torque is recommended?
The XT160 is recommended for direct-drive wheelbases rated at 30 Nm+.
06
Which wheel mount is included?
The Flat-to-Front Mount™ is included as standard, together with the conversion plate. It supports a wide range of flat and front wheelbase mounting patterns and provides increased angle and depth adjustment.
07
What pedal deck is included?
The new Extended Profile Pedal Deck is included as standard. It has a larger pedal mounting area, increased angle and longitudinal extension adjustment, and an integrated heel rest.
08
Can the XT160 be configured beyond a traditional GT position?
Yes. The combined adjustment range supports traditional GT as well as lower, more extended LMP2 and Formula-style driving positions.
09
Is the XT160 motion compatible?
Yes. The XT160 is designed as a highly rigid foundation for full-motion platforms and high-end simulator builds.
