SimXPro XT120 GT Sim Racing Cockpit

• Base Frame Dimensions: approx. 1350 × 660 × 820 mm
• Width Between Upright Profiles: 580 mm
• Rig Type: Premium heavy-duty profile chassis
• Weight: approx. 56 kg
• Included: Extended shifter mount, front wheel mount, profile pedal deck
• Not Included: Wheel mounting bolts (brand-specific)

Included Profile Lengths:

• 2 × 1300 mm — 40120
• 2 × 800 mm — 40120
• 2 × 500 mm — 40120
• 2 × 500 mm — 4040
• 1 × 580 mm — 4080
• 1 × 340 mm — 4040


Compatibility (Wheelbases):

• Bodnar 50 Series
• Lenze MCS12
• MiGe 130ST (small & big)
• Simagic Alpha Mini, Alpha, Alpha Ultimate
• SimuCube 2 Sport / Pro / Ultimate
• VRS DirectForce Pro
• Moza R16 / R21
• AccuForce V2 Pro


Pedal Compatibility: All major loadcell and hydraulic pedals

To mount a seat on any SimXPro chassis, you will need either the SimXPro Universal Seat Mount or the SimXPro Extended Universal Seat Mount (provides a wider tilt adjustment range). These brackets are not included with the cockpit and must be purchased separately.

SimXPro Universal Seat Mounts are compatible with:

• SimXPro GT Seat,
• SimXPro GTR Seat,
• SimXPro GT XL Seat,
• All sim-racing and motorsport seats with side-mount attachment points

For seats with bottom-mount attachment:

• they can be installed using 4× corner brackets to mount the seat flat onto the chassis profile
• these extra brackets are not included with the rigs
• exception: SimXPro GT-RS, which includes an extended hardware kit supporting bottom-mount seat installation"

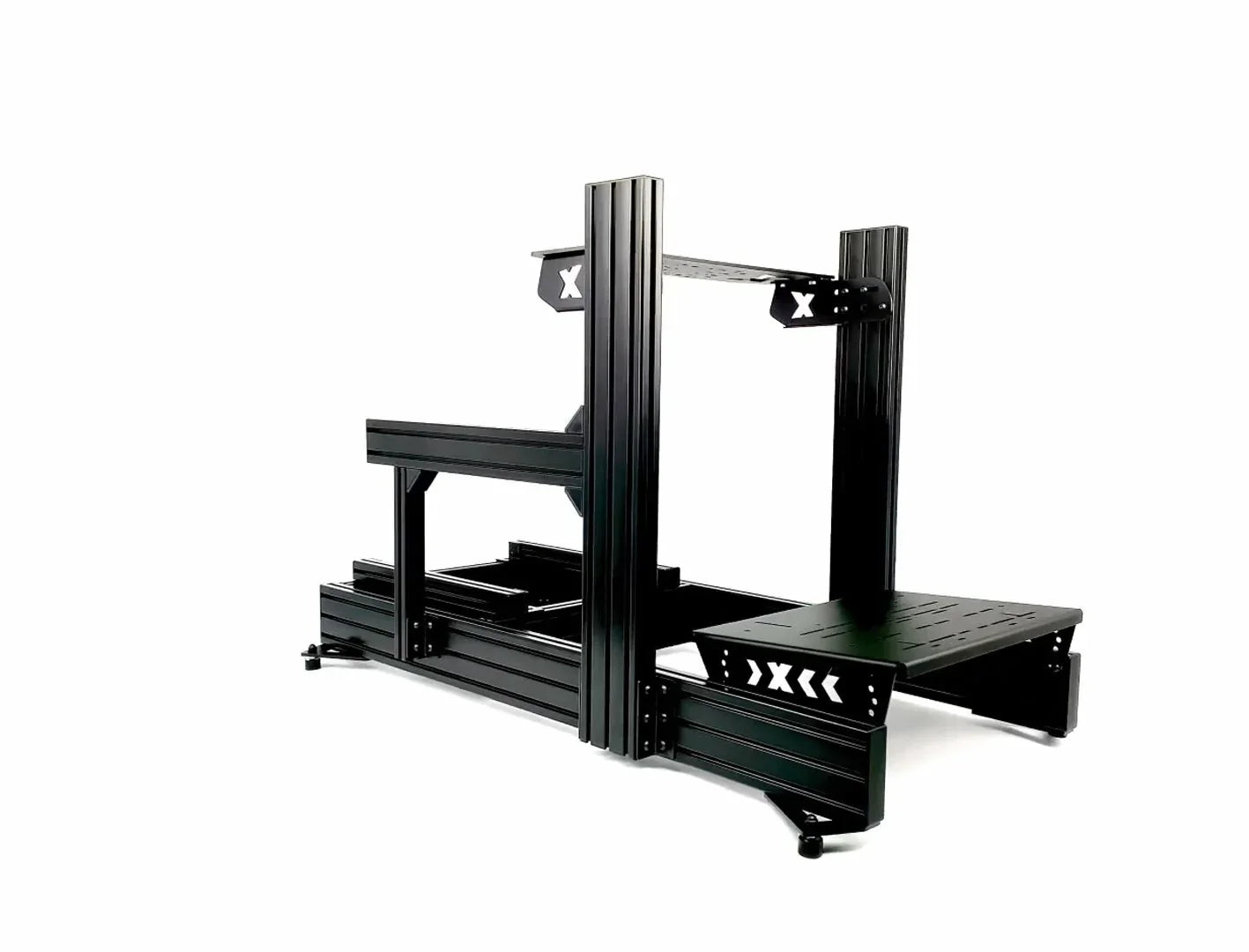

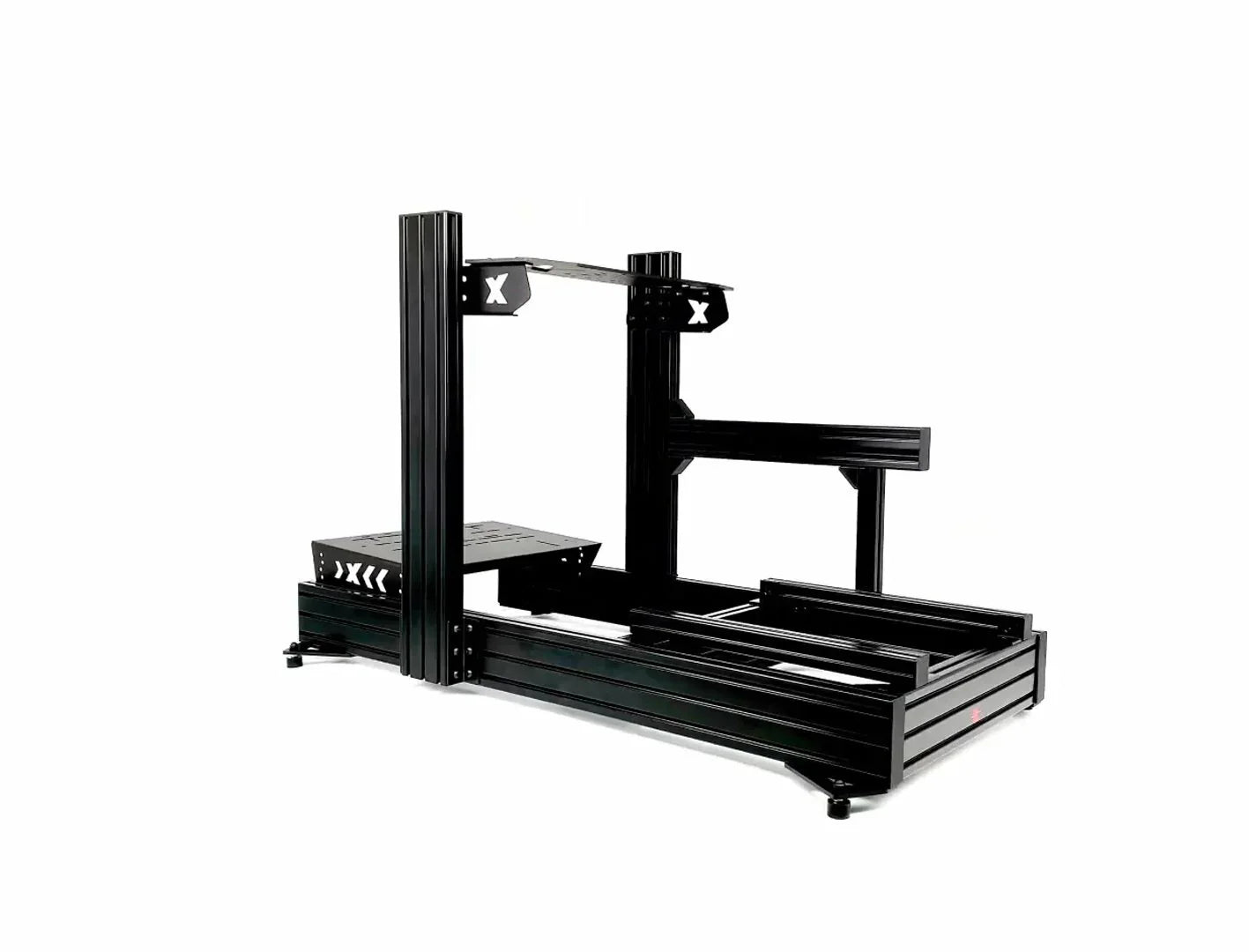

The XT120 base frame is engineered for ultimate rigidity, using 40120 heavy-duty profiles that deliver the highest stiffness in the SimXPro lineup. This design ensures zero flex under extreme pedal forces and Direct Drive torque levels.

Every connection point features precision-cut aluminum and robust steel brackets, ensuring the chassis remains rock-solid during even the most intense racing sessions. The modular profile system provides limitless adjustability, enabling perfect ergonomics for GT, Rally, Drift, or Formula-style seating positions.

As part of the SimXPro ecosystem, the XT120 offers long-term upgradeability, seamless compatibility, and a future-proof foundation for any professional sim racing setup.

The XT120 comes standard with the Universal Front Wheel Mount, engineered from 8 mm hardened steel to handle the world’s most powerful Direct Drive wheelbases with zero flex.

Compatible With:

• MiGe 130 series (OSW)
• SimSteering AKM5x
• Lenze MCS12H
• SimuCube 2 Sport / Pro / Ultimate
• AccuForce Pro
• VRS DirectForce Pro
• Moza R16, R21
• Simagic wheelbases with front-mount capability


Features:

• Extremely rigid front-mount design
• Matte black textured powder coating
• High-strength torque-resistant bracket system
• Fully adjustable mounting position

Other wheel mount options:

Here are all compatible wheel-mount options - check them out to find the perfect match for your wheel base!

• SimXPro Extended Universal DD Front Mount (8 and 5 mm hardened steel combined with an aluminium profile)
• Universal Flat wheeldeck (6 mm hardened steel) - Compatible with Fanatec, Logitech, Thrustmaster, and similar bases
• Fanatec CSL DD PRO / CS DD Front Mount (with support bar)
• Fanatec DD1 / DD2 Side-to-Front Mount (8 mm hardened steel)

Each wheel mount is engineered for maximum strength and adjustability, ensuring a stable, flex-free driving position.

(Note: Universal flat wheel deck is optional. Standard delivery includes the universal front mount.)

The XT120 includes the SimXPro Profile Pedal Deck as standard - a professional-grade pedal mounting platform ideal for loadcell and hydraulic brake systems.

Features & Benefits:

• Fully adjustable height, tilt, and distance
• Extreme rigidity with zero flex
• Supports all major pedal brands
• Ideal for high-force braking applications
• Utilizes profile channels for custom mounting patterns
• Black powder-coated profiles and brackets


Whether you're using loadcell pedals or high-pressure hydraulic systems, the XT120 pedal deck ensures stability, precision, and a highly realistic brake feel.

The Extended 58 cm Shifter Mount included with the XT120 provides ultimate flexibility for shifters, handbrakes, or dual-device setups.

Features:

• Optimized for GT, Rally, Drift, and Endurance layouts
• Heavy-duty aluminum + steel mounting surfaces
• Long-reach adjustable arm for perfect ergonomics
• Compatible with all major shifters and handbrakes
• Rigid, flex-free design even under high-force sequential shifts


This extended mount gives you full freedom to customize your driving position to match your racing style.

The SimXPro XT120 stands as the ultimate solution for sim racers who demand the highest levels of strength, stability, and adjustability. Its heavy-duty construction ensures a completely flex-free experience, even under the most powerful Direct Drive forces and extreme braking loads.

Why choose the XT120?

• Heavy-duty 40120 profile construction
• Flex-free performance for professional racing
• Universal front mount included
• Profile pedal deck included
• Extended shifter mount included
• Fully modular and upgrade-ready
• Compatible with all high-end wheelbases
• Perfect long-term foundation for serious drivers


If you want a cockpit without compromises - one that will outlast multiple hardware generations - the SimXPro XT120 is your premium, professional-grade choice.
