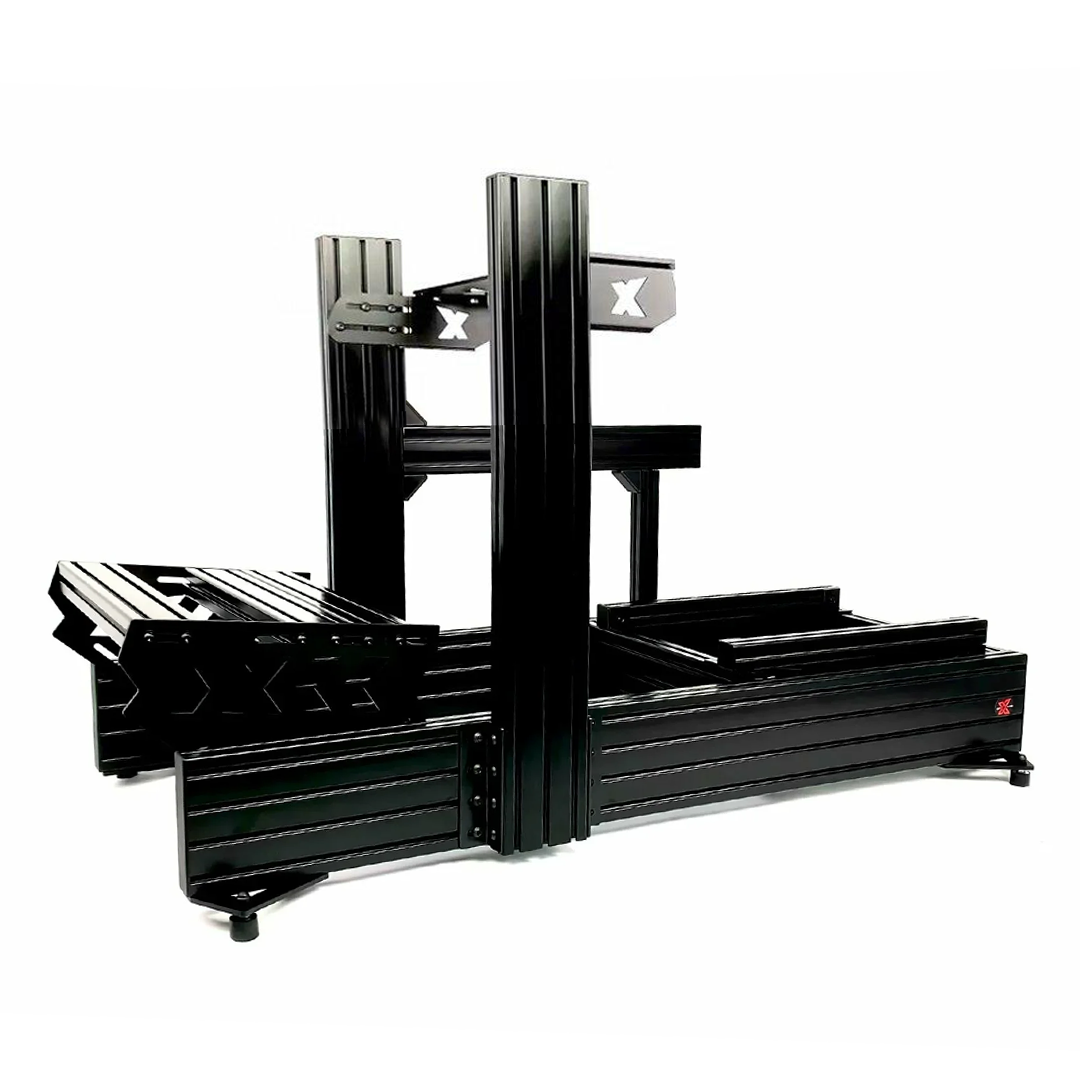

SimXPro XT160 GT Sim Racing Cockpit

• Base Frame Dimensions: approx. 1350 × 660 × 820 mm
• Width Between Upright Profiles: 580 mm
• Weight: approx. 65 kg
• Rig Type: Extreme heavy-duty professional chassis

Included Profile Lengths:

• 2 × 1300 mm – 40160
• 2 × 500 mm – 40160
• 2 × 800 mm – 40120
• 1 × 580 mm – 4080
• 2 × 500 mm – 4040
• 1 × 340 mm – 4040


Compatible Wheelbases (Front Mount):

• Bodnar 50 Series
• Lenze MCS12
• MiGe 130ST (small & big)
• Simagic Alpha Mini / Alpha / Alpha Ultimate
• SimuCube 2 Sport, Pro, Ultimate
• VRS DirectForce Pro
• Moza R16, R21
• AccuForce V2 Pro


Compatible Wheelbases (Flat Mount optionally purchased):

• Fanatec
• Thrustmaster
• Logitech
• Other common consumer wheelbases


Not Included: Wheelbase mounting bolts (brand-specific)

To mount a seat on any SimXPro chassis, you will need either the SimXPro Universal Seat Mount or the SimXPro Extended Universal Seat Mount (provides a wider tilt adjustment range). These brackets are not included with the cockpit and must be purchased separately.

SimXPro Universal Seat Mounts are compatible with:

• SimXPro GT Seat,
• SimXPro GTR Seat,
• SimXPro GT XL Seat,
• All sim-racing and motorsport seats with side-mount attachment points

For seats with bottom-mount attachment:

• they can be installed using 4× corner brackets to mount the seat flat onto the chassis profile
• these extra brackets are not included with the rigs
• exception: SimXPro GT-RS, which includes an extended hardware kit supporting bottom-mount seat installation"

The XT160 base frame is the strongest chassis SimXPro has ever produced. Built from oversized 40160 industrial aluminum profiles, it offers extreme rigidity and is specifically engineered for high-torque Direct Drive wheelbases and motion platforms.

Thanks to the SimXPro ecosystem, the XT160 is endlessly modular - all SimXPro parts fit all SimXPro profiles, allowing you to expand, adjust, or reconfigure your rig at any time. Even the uprights can be connected using either hardened steel corner brackets or optional aluminum T-connect plates.

Designed for competitive and professional sim racers, the XT160 provides a completely flex-free foundation, ensuring precise and consistent force feedback response under all conditions.

With the XT160, you can select your preferred wheel mount from several high-grade mounting options. The standard Universal Front Wheelmount included in the default package is made from 8 mm hardened steel and supports the most powerful Direct Drive bases on the market.

Compatible Wheelbases (Universal Front Mount):

• Bodnar 50 Series
• Lenze MCS12
• MiGe 130ST (small & big)
• Simagic Alpha Mini, Alpha, Alpha Ultimate
• SimuCube 2 Sport / Pro / Ultimate
• VRS DirectForce Pro
• Moza R16 / R21
• AccuForce V2 Pro


Other wheel mount options:

Here are all compatible wheel-mount options - check them out to find the perfect match for your wheel base!

• SimXPro Extended Universal DD Front Mount (8 and 5 mm hardened steel combined with an aluminium profile)
• Universal Flat Mount (6 mm hardened steel) Compatible with Fanatec, Logitech, Thrustmaster, and similar bases
• Fanatec CSL DD PRO/ CS DD Front Mount (with support bar)
• Fanatec DD1 / DD2 Side-to-Front Mount (8 mm hardened steel)


Each wheel mount is engineered for maximum strength and adjustability, ensuring a stable, flex-free driving position.

The XT160 includes the Extended Profile Pedal Deck as standard - your go-to solution for all high-end loadcell and hydraulic pedal sets.

Key Features:

• Increased height and angle adjustment range
• Supports extreme braking forces
• Ultra-rigid aluminum + hardened steel construction
• Black powder-coated finish
• Fully adjustable: height, tilt, distance, and upside-down mounting
• Designed for hydraulic and high-pressure loadcell systems


This pedal tray provides the precision, stability, and adjustability required for professional-level racing.

Included with the XT160 is the Extended Shifter Mount, designed for maximum reach, strength, and compatibility.

Highlights:

• Heavy-duty aluminium + steel structure
• Ideal for sequential shifters, handbrakes, or dual setups
• Fully adjustable thanks to profile slots
• Engineered to stay flex-free even during high-force shifting
• Supports GT, Rally, Drift, and Endurance-style positioning


This long-range mount ensures you can dial in the perfect placement for any racing discipline.

If you demand the highest performance, the SimXPro XT160 is the chassis that delivers. Designed for pro-level racing and the most powerful hardware, this cockpit sets the standard for durability, adjustability, and long-term upgrade potential.
With oversized 40160 profiles, hardened steel brackets, an extended pedal deck, and universal front mounting, the XT160 is built to outperform and outlast.

Why choose the SimXPro XT160?

• Highest rigidity in the SimXPro lineup
• Supports Direct Drive and full-motion systems
• Extended pedal deck included
• Universal front mount included
• Extended shifter mount included
• Modular and fully upgradeable system
• Flex-free performance under extreme forces
• Designed for professional and competitive sim racers


The XT160 is more than a cockpit - it’s a long-term racing platform engineered for the most demanding drivers. If you want the absolute best, this is your rig.
