Caractéristiques du produit

Inclus dans la boîte
  • Universal wheel deck
  • Standard pedal tray or Profile Pedal Deck
  • Rubber dampers
  • Mounting brackets
  • Black bolts. Nuts and t-nuts with ball spring
  • End caps for all visible profiles, cover caps for all visible nuts
  • English step-by-step building instructions
Specifications

Base frame dimensions: Ca. 1250x660x800mm


Châssis

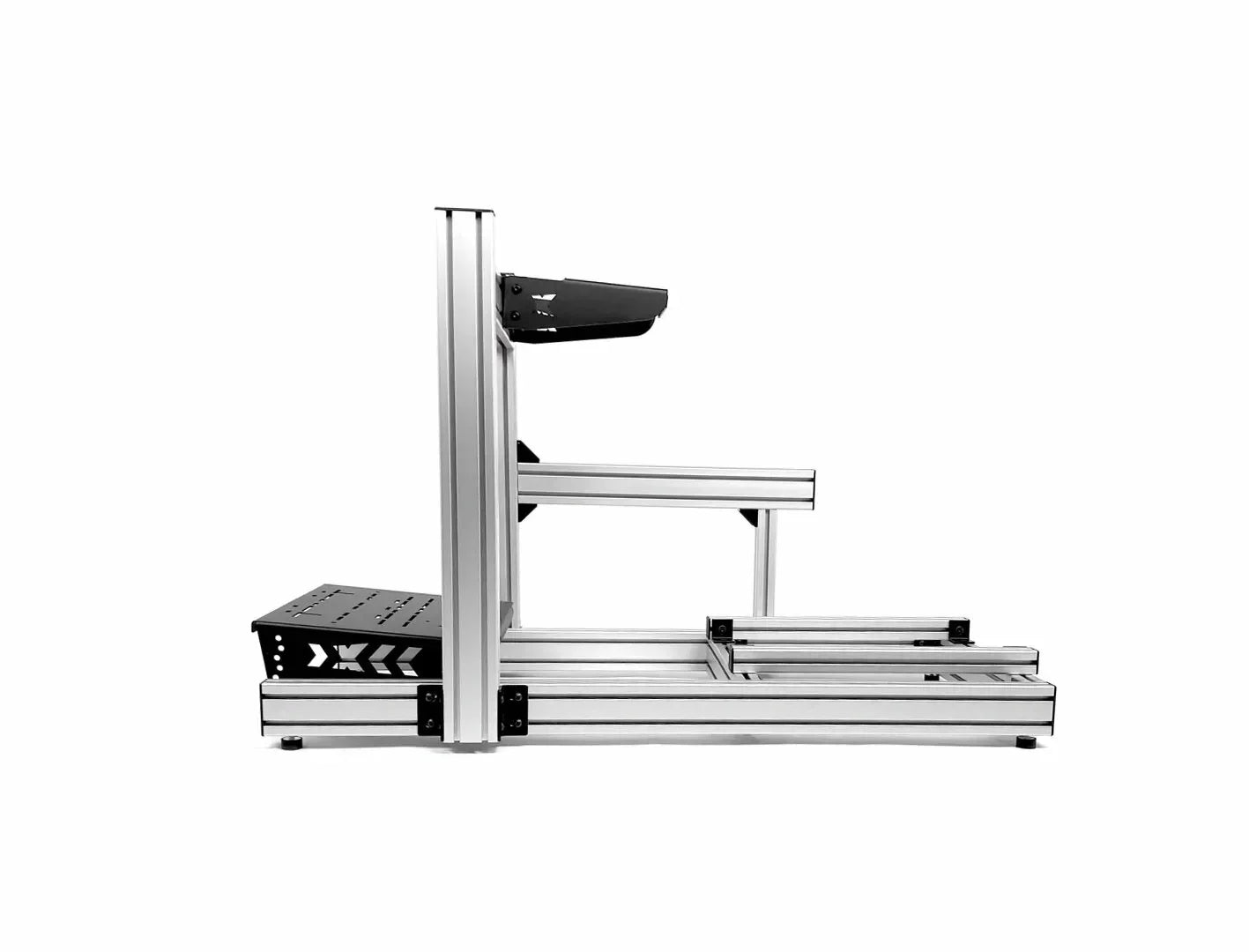

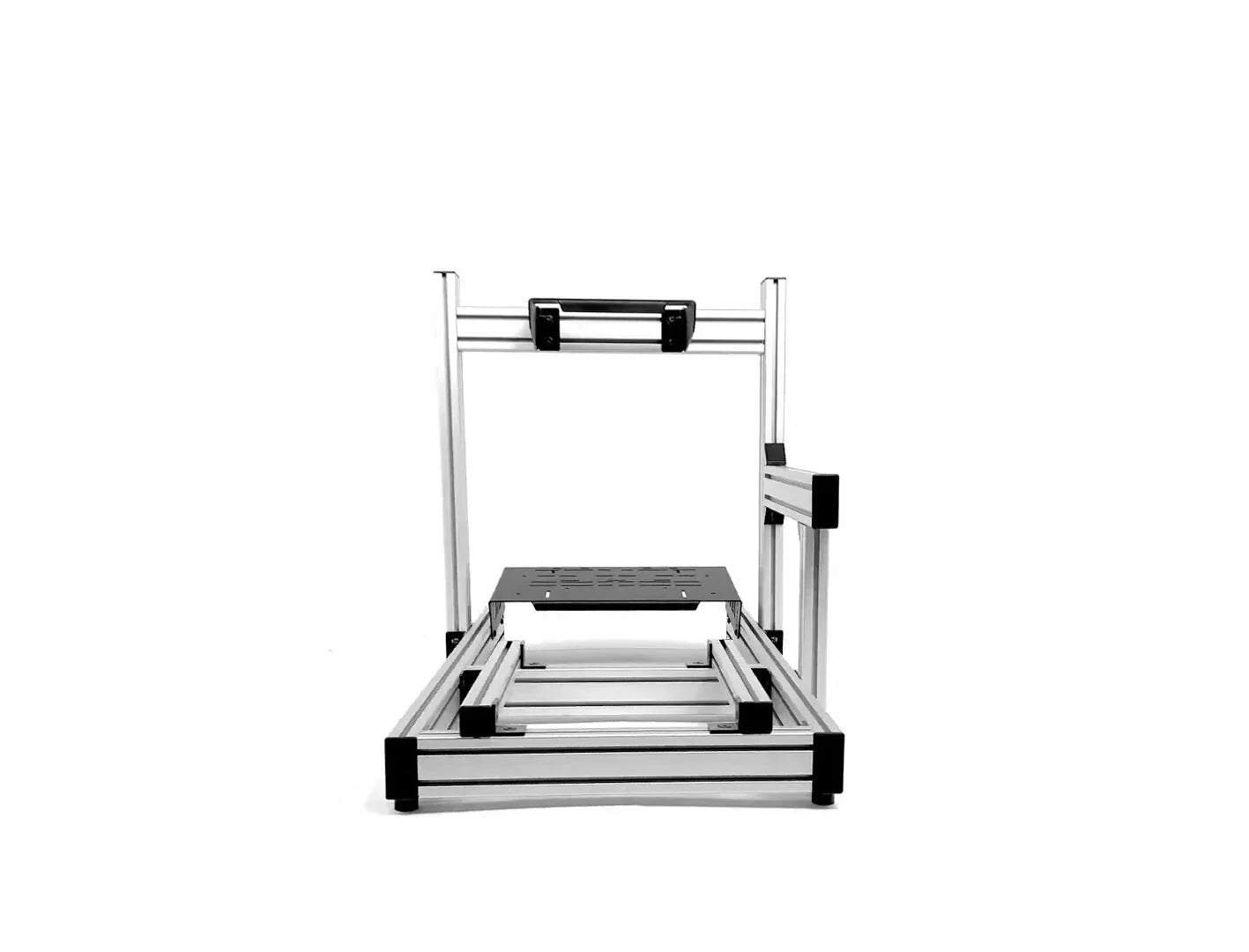

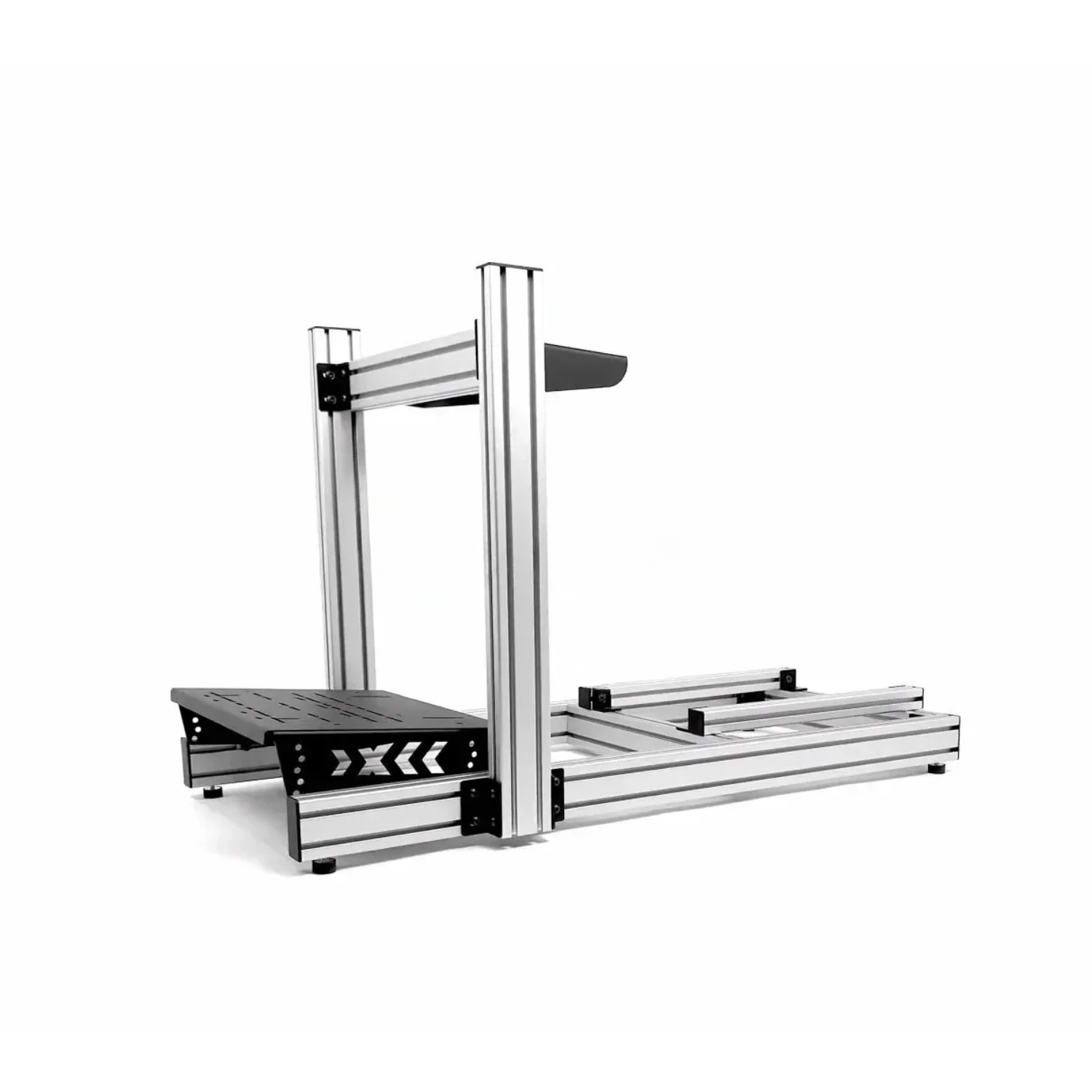

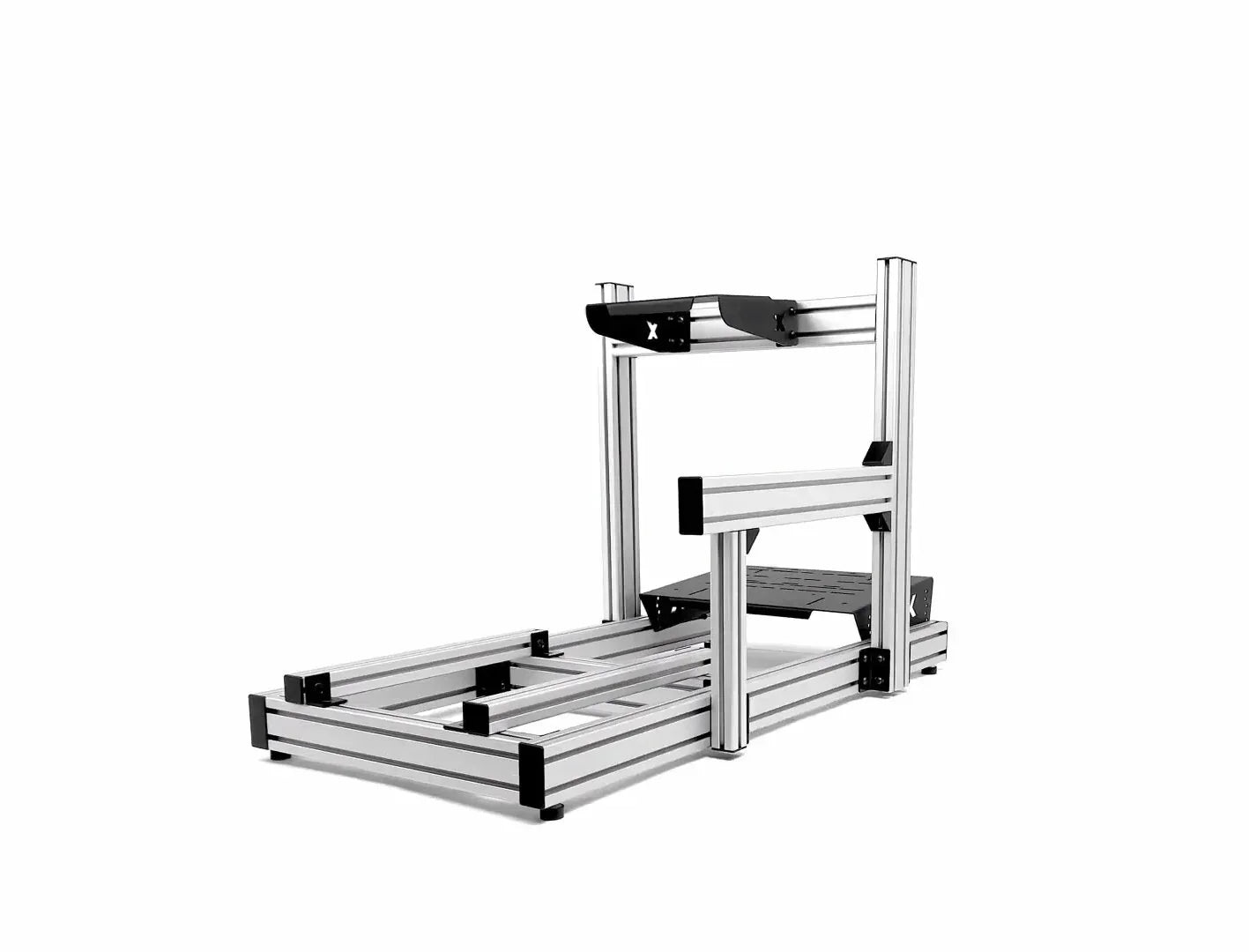

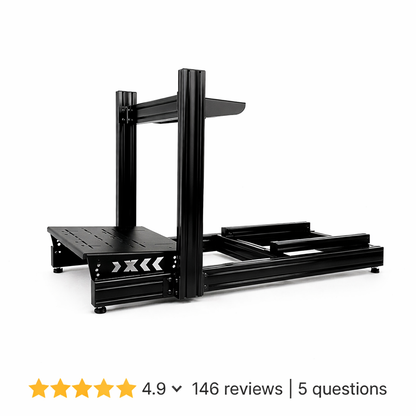

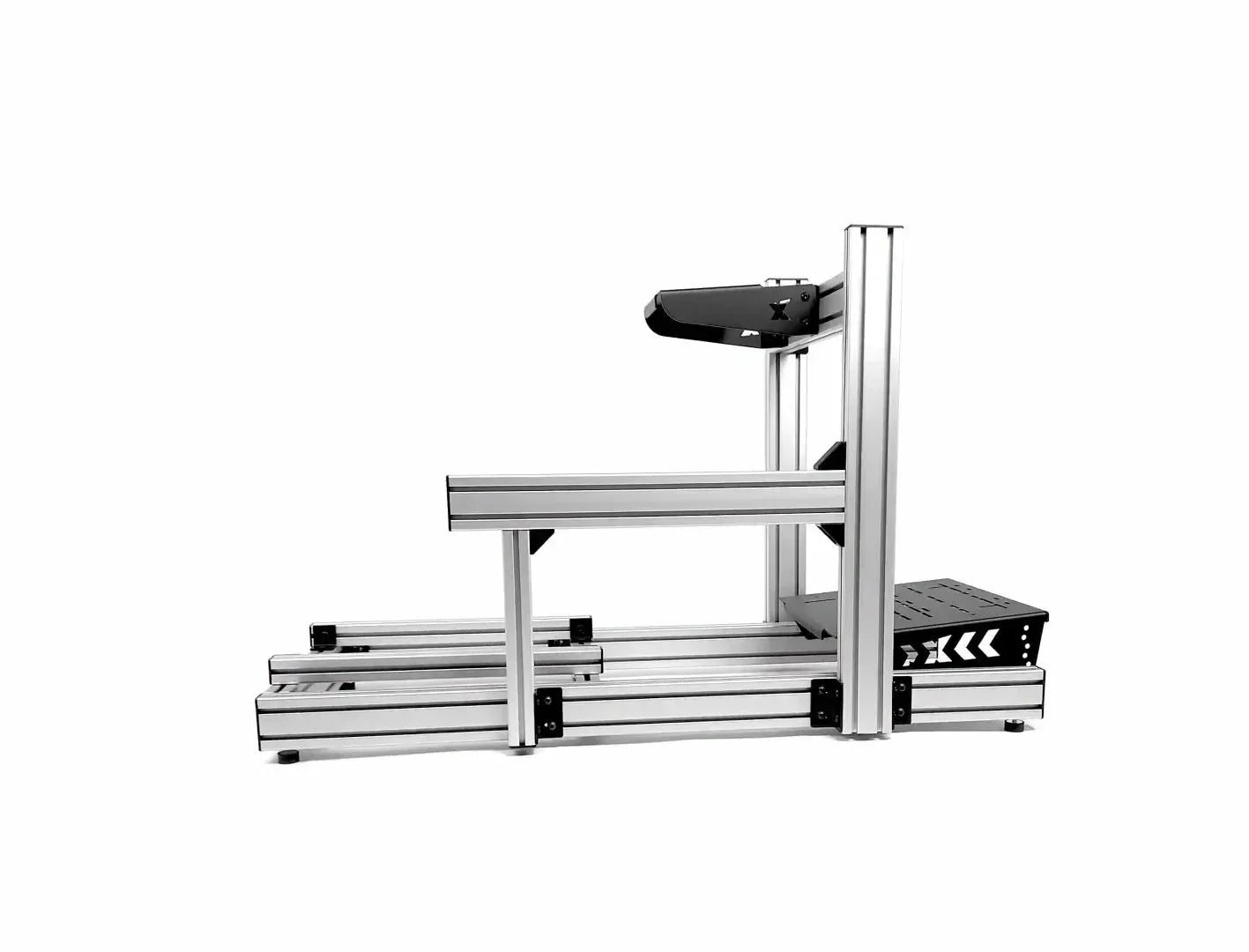

The base frame:

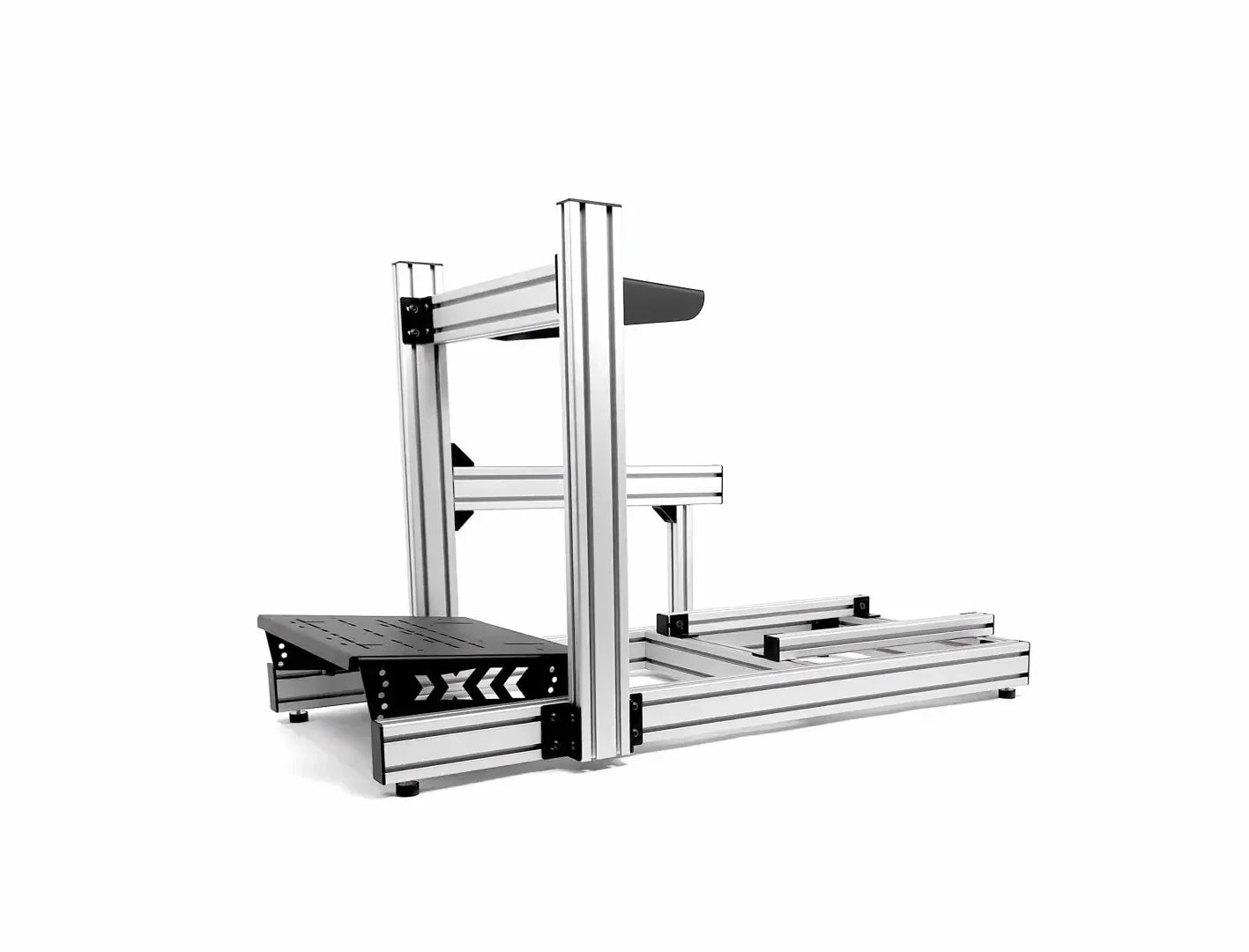

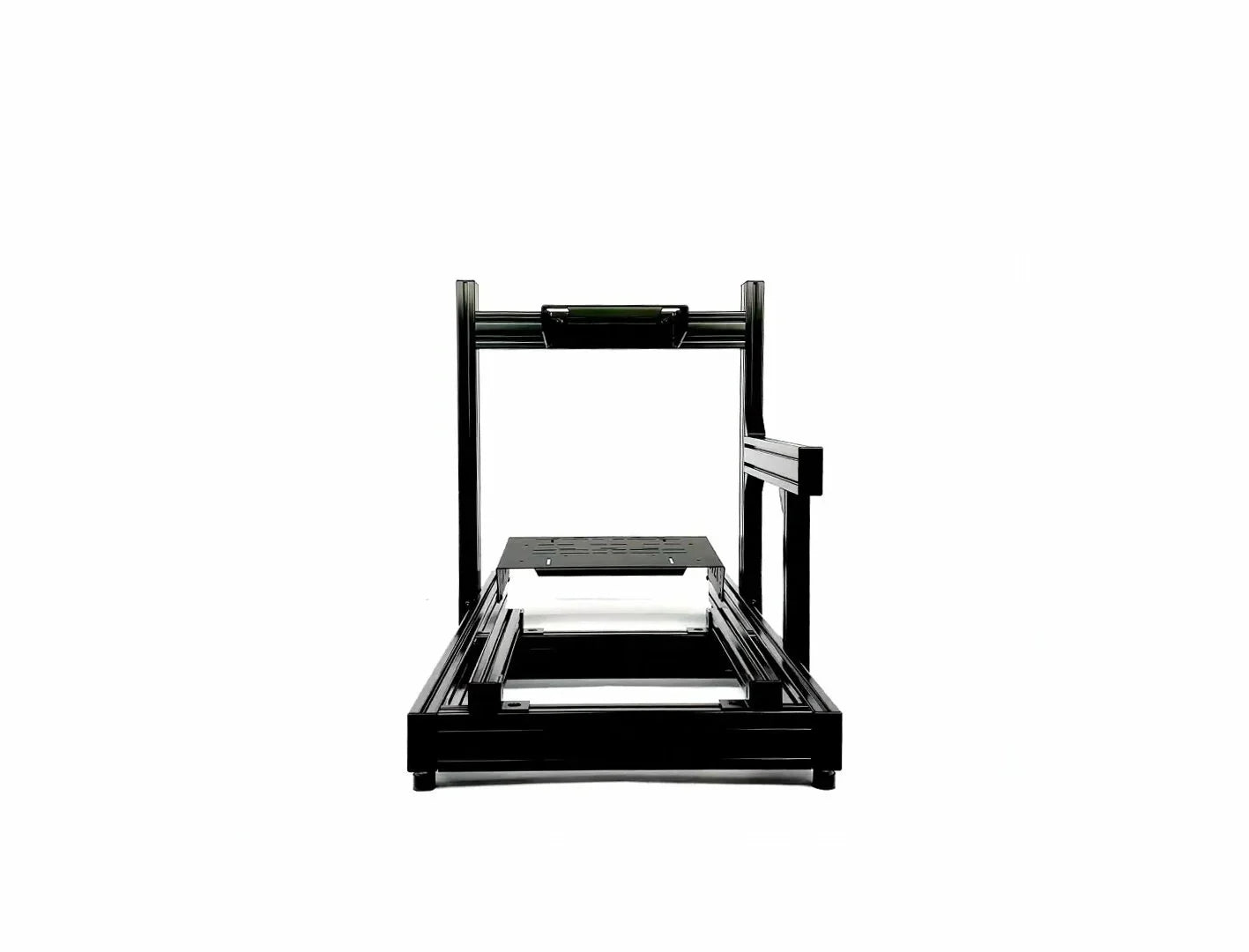

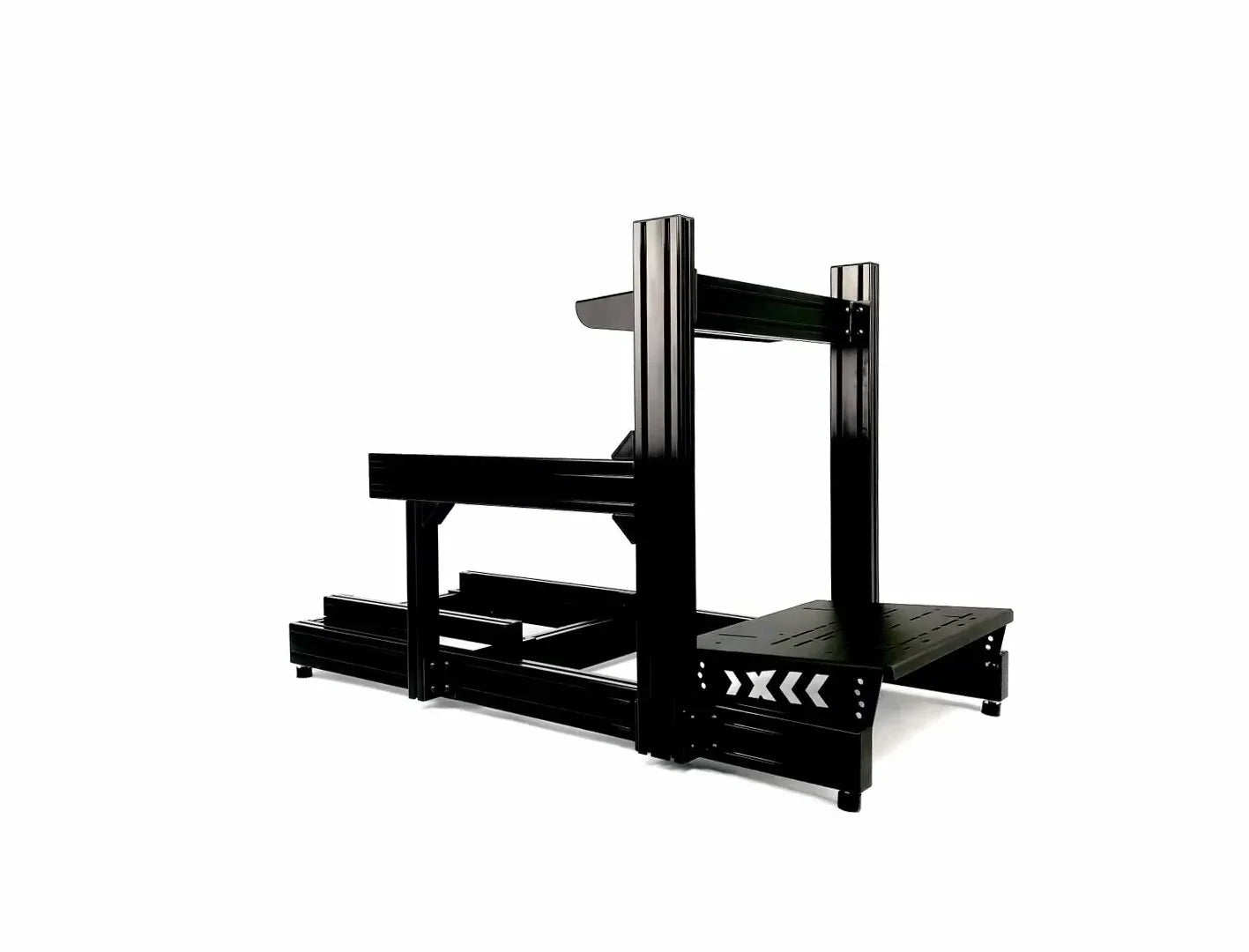

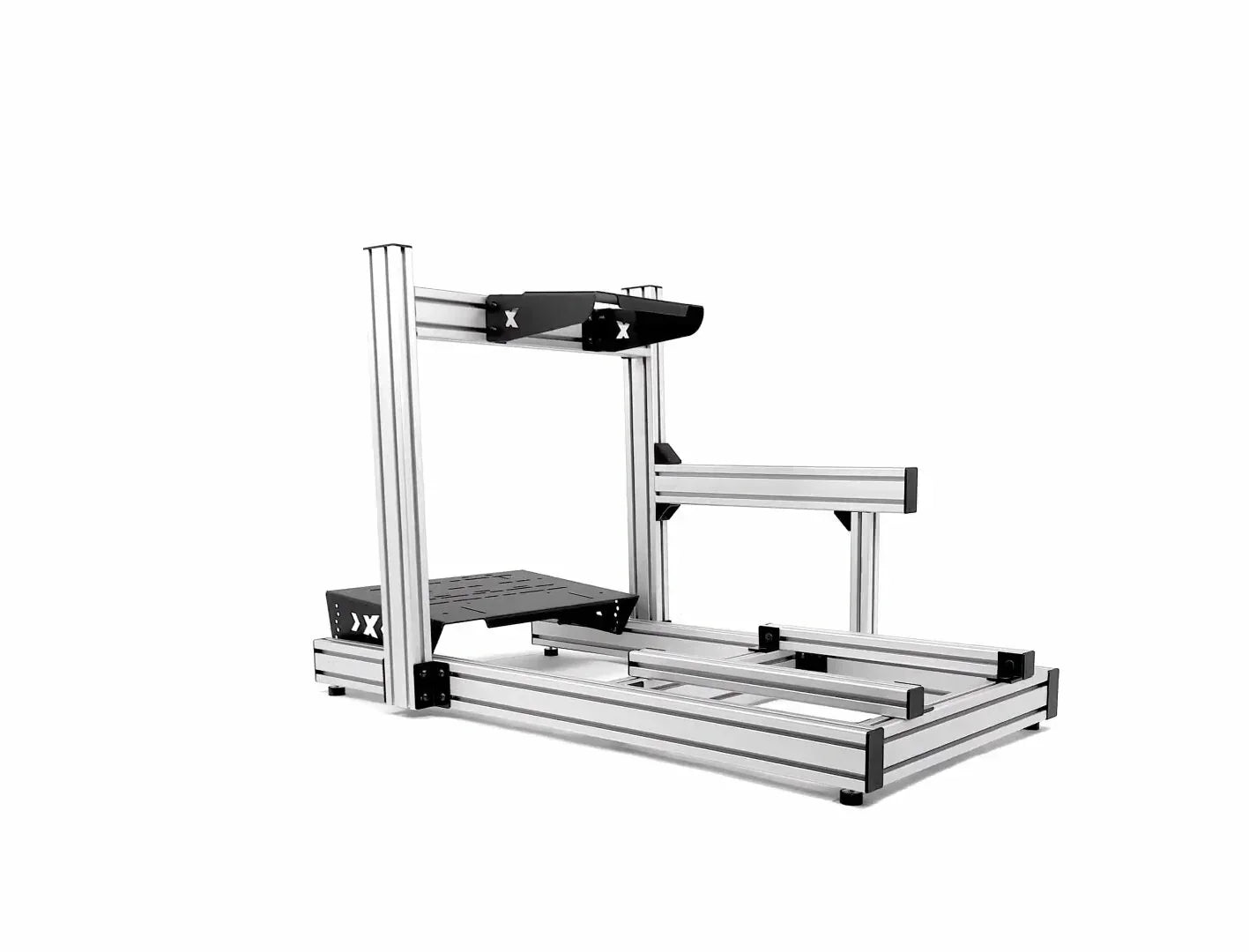

The X80 is constructed with 4080 aluminum extrusion profiles. Not all aluminum profiles in the market are the same. There is a lot of difference in the quality and density of the profiles. SimXPro uses european, high quality profiles. The X80 can hold a DD.


Base frame dimensions: Ca. 1250x600x800mm

Weight: 32 KG


Basic package contains (without options)

Aluminium profiles:

2x 1200 mm - 4080 profiles

2x 750 mm - 4080 profiles

1x 580 mm - 4080 profile

2x 500 mm - 4080 profiles

2x 500 mm - 4040 profiles

Optional: Profiles for shifter mounting point


Universal wheeldeck, standard pedal tray, corner brackets, bolts, nuts, t-nuts and washers for mounting the rig. End caps for all visible profiles, cover caps for all visible nuts. English building instructions.


T-nuts and slides:

Our profiles have slots all around. Where possible, we have provided our brackets with slides instead of holes. This means you are not stuck with one fixed setup and you can adjust everything to your own preferences.


Assembling the X80:

The X80 must be assembled with 2 people. The X80 is the easiest rig to assemble. The mounting instructions are clear. Because there are so many possibilities with our system, a little technical insight is needed. The most important thing to prevent flex is to tighten everything properly.

Support de Volant

Wheeldeck

The X80 is standard equiped with the SimXPro universal wheeldeck. You can upgrade to all available wheel mounts in the option menu.


Material: 3 mm hardened steel

Finishing: Brake pressed for extra strength

Color: Matt black texture powder coating


Dimensions LxWxH (mm): 220x280x80

Weight (kg): 2,5

Adjustable: Yes: Tilt, angle, up and down.


Specifications

Compatible with:

All Fanatec wheelbases

All Trustmaster wheelbases

All Logitec wheelbases

All other common brands

Not compatible with: Unknown

Not included: Bolts for mounting the wheel to the wheeldeck. Type and lenght are brand specific.

Support de pédalier

Standard Pedal tray:

Standard pedal tray is included. This tray fits all the common pedalsets in the market: Fanatec, Thrustmaster, Logitec, etcetera. You can upgrade to our profile pedal deck when you have a strong loadcell or hydraulic pedalset.

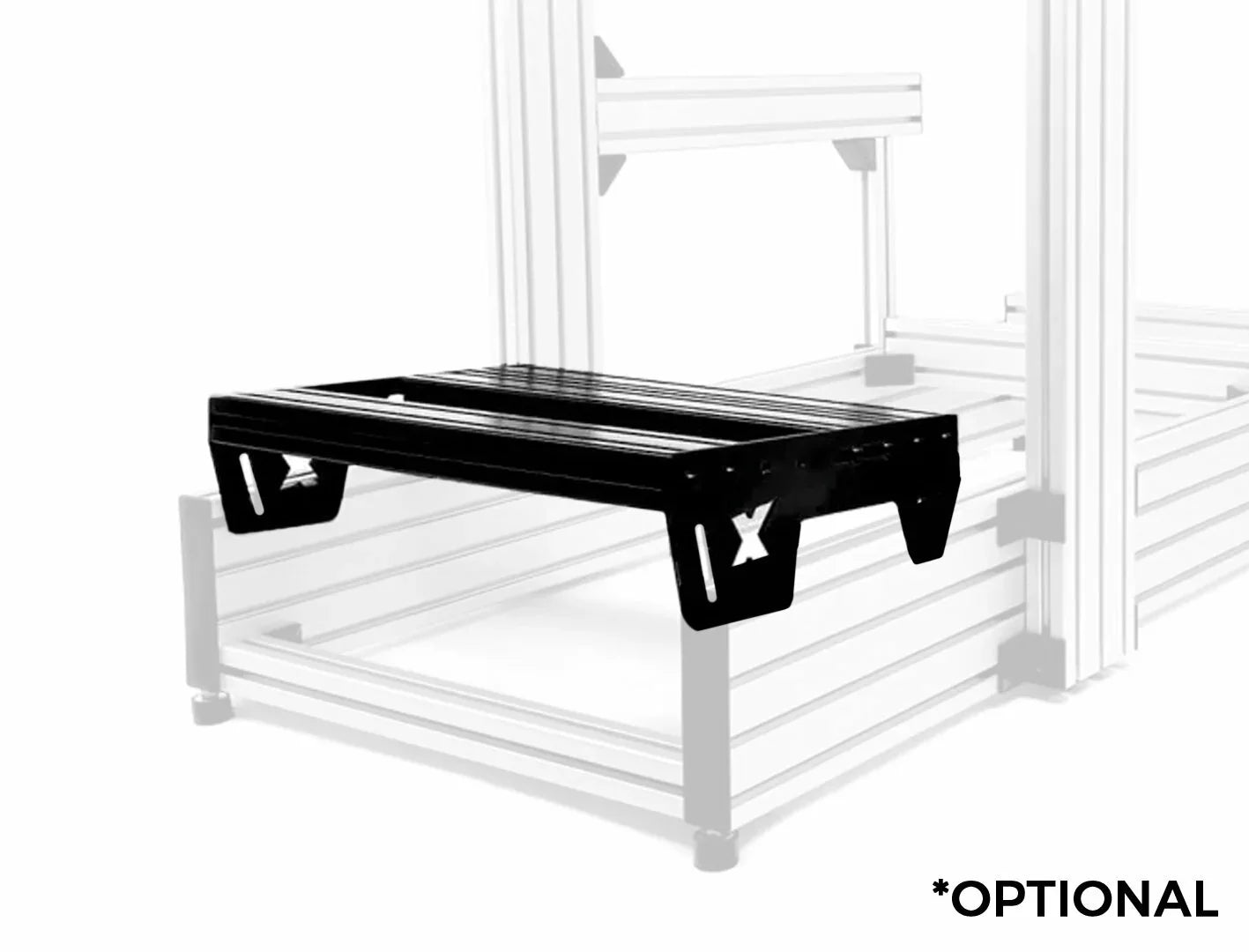

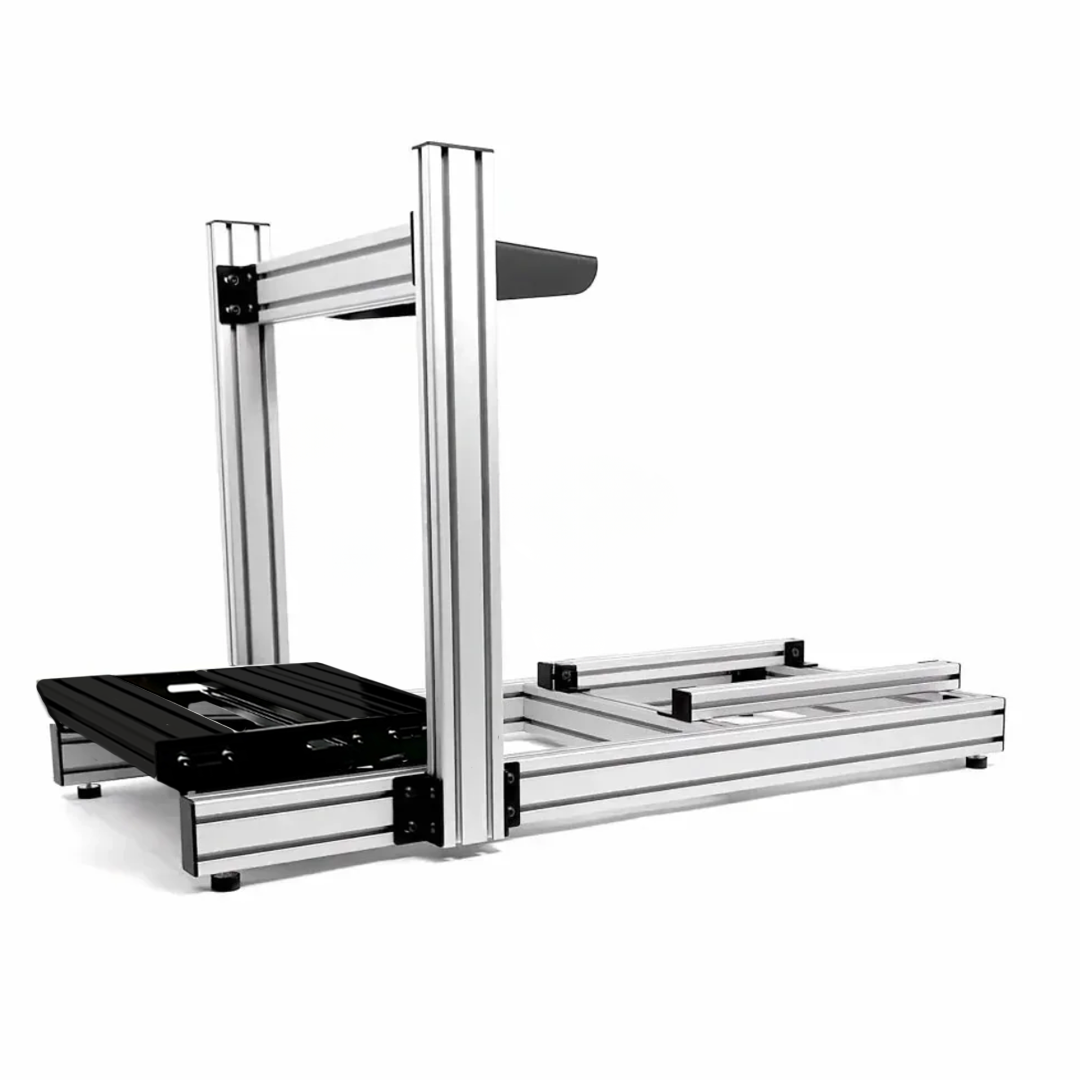

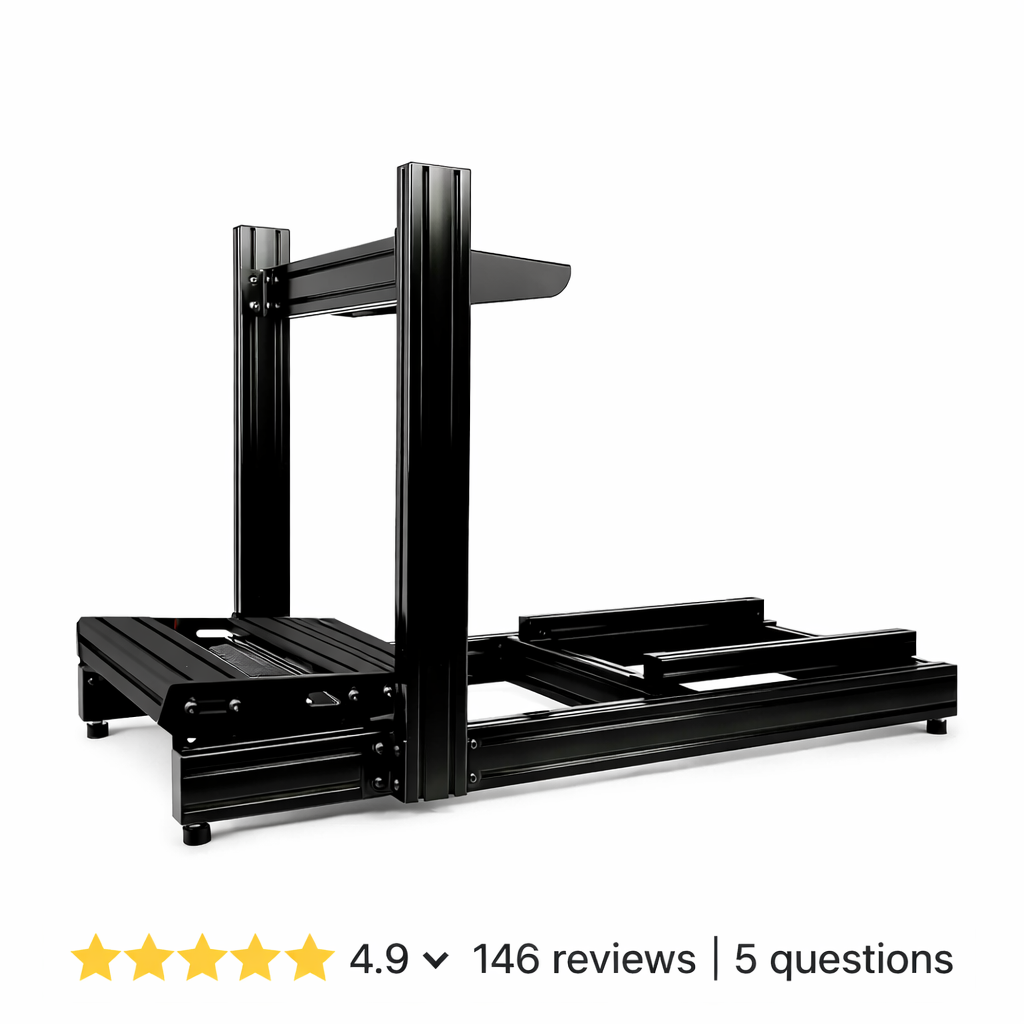

Profile Pedal Deck (upgrade +€ 20,- incl. vat):

Can be selected in the option field. This profile pedal deck can not hold pedalsets which must be mounted from the bottom.

You can use T-nuts in the channels of the profiles to create the neccesery mounting pattern. Make sure you have the right mounting hardware or find yourself what you need in our bolts and nuts section.

Both trays can be adjusted in hight and angle to fit your preferences.

Bracket color: Matt black texture powder coating

Profile color: Black Powder coating.

Adjustable: Yes, adjustable in height, angle or upside down.

Vidéo tutorielle
Instruction video
youtu.be/KSvA4hY2A2k
Plus d’informations

What is optional:
· SimXPro® Profile pedal deck (upgrade)
· SimXPro® Front wheel mounts (upgrade)
· SimXPro® Adjustable feet (upgrade)
· Simple shifter profile mounting point* (upgrade)
· Extended shifter profile mounting point* (upgrade)

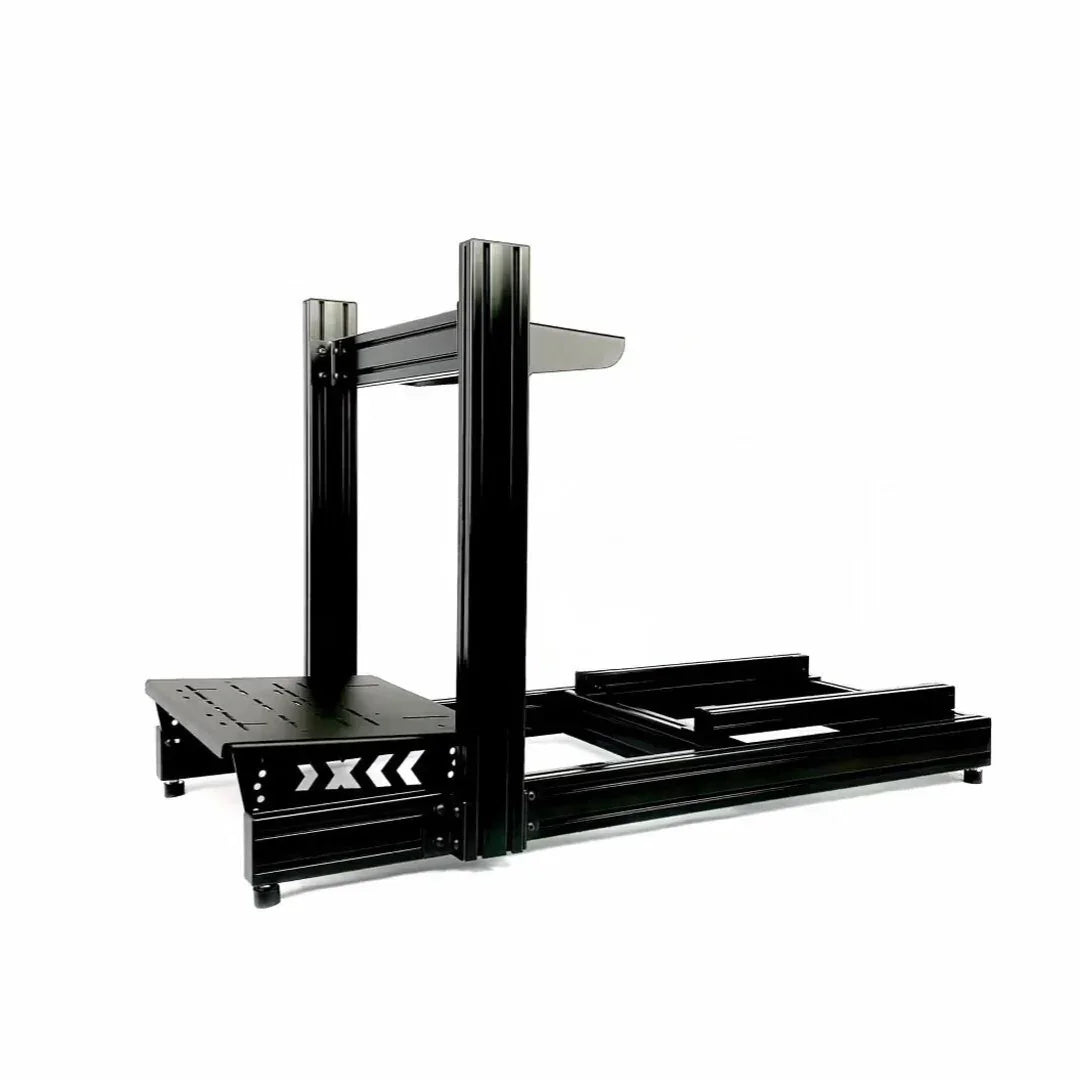

For the X80 we had a lot of requests to order it without the shifter profiles.
This is the only rig where these profiles are not standard included.
