A 295 mm formula-style steering wheel with a 4.3-inch 60 fps display, configurable Hall-sensor paddles and verified Fanatec QR2, Simagic, MOZA, Simucube and Asetek routes.

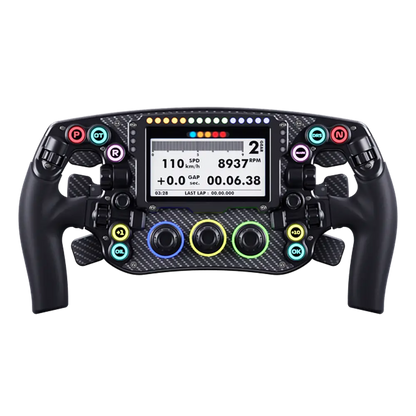

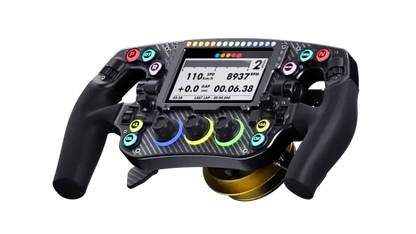

The LEOXZ XF1 Ultimate combines a polyurethane grip, 4.3-inch 800 × 480 IPS display, RGB controls and configurable paddles. Wired PC operation uses the supplied USB-GX12 cable; the optional Wireless Kit adds 2.4 GHz operation. Quick release and Wireless Kit are separate choices.
Why choose this product?
- The 60 fps SimHub-compatible display, RGB controls and selectable paddle layouts put telemetry and race inputs directly on a 295 mm wheel.
- Officially documented QR routes cover Fanatec, Simagic, MOZA, Simucube and Asetek, helping you select the correct connection instead of relying on a generic adapter.
Product details
Display, controls and paddles

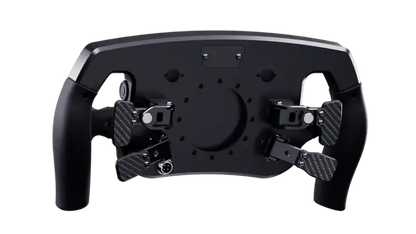

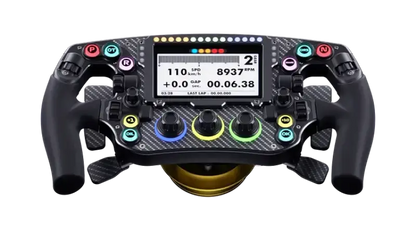

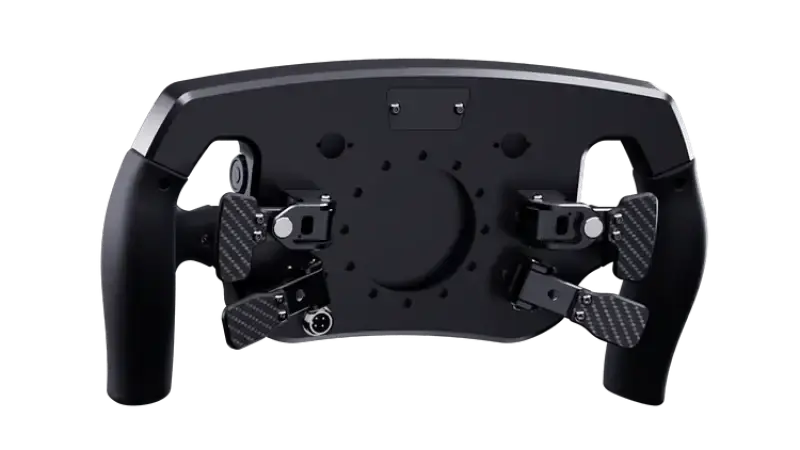

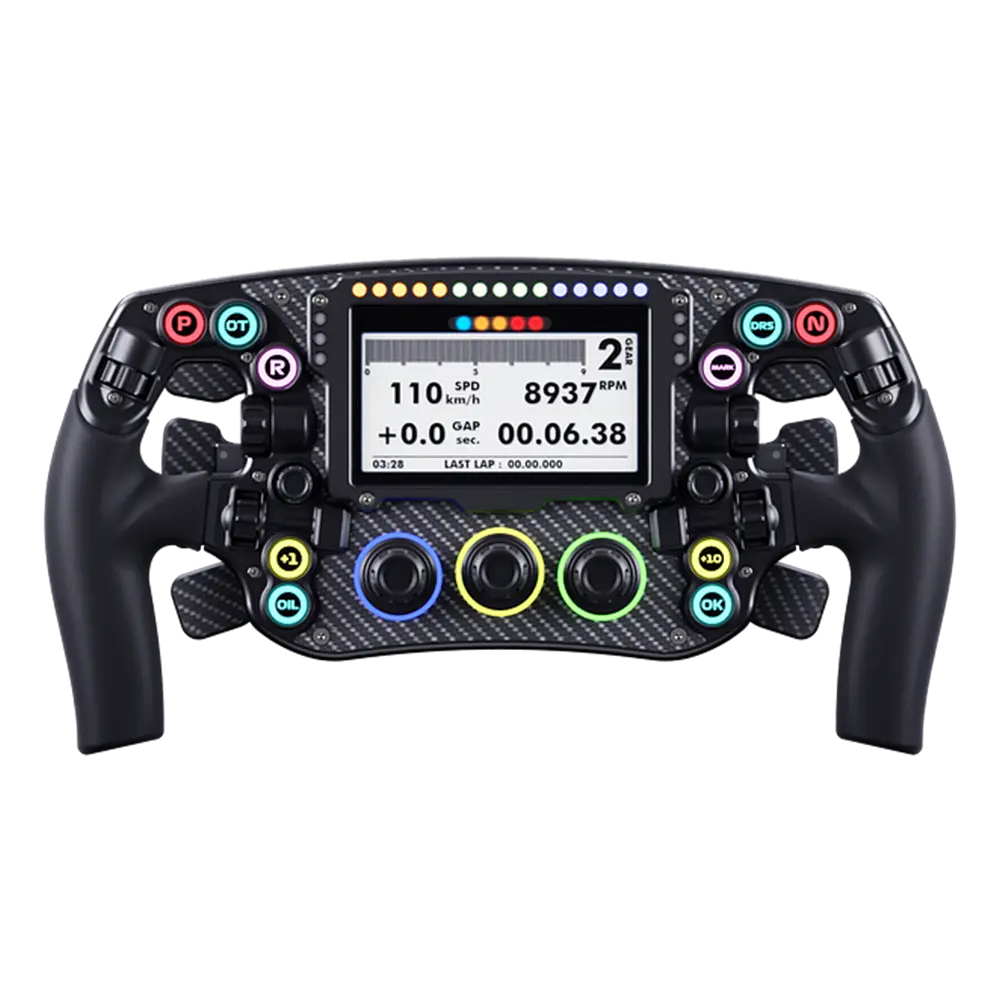

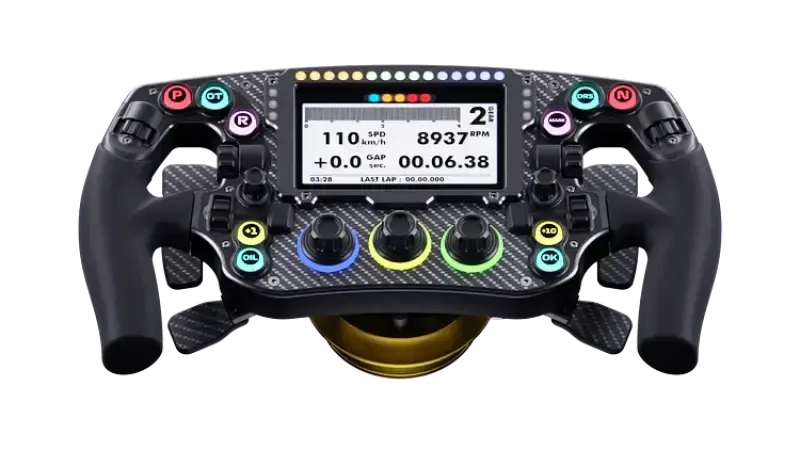

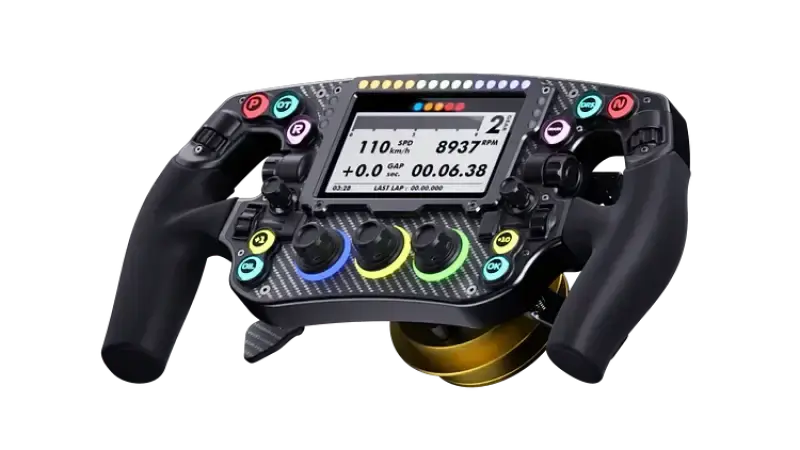

The 4.3-inch IPS screen runs at 800 × 480 and 60 fps through SimHub and SimBridge. Magnetic shifters are standard; clutch and option paddles are selectable. All paddles use non-contact Hall sensors, and clutch paddles support bite-point and axis modes.
Fanatec QR2 connection route
For a Fanatec wheelbase already fitted with QR2 Base-Side Type-M or Type-C, use the LEOXZ QR2 Quick Release in LINK configuration. LEOXZ defines LINK as the QR2 version for LEOXZ wheels and uses a 7-pin electrical connection. A QR1 solution is not required when the base is already using QR2. The supplied USB-GX12 cable remains available for wired PC operation.
Wireless and other ecosystems
The optional Wireless Kit adds 2.4 GHz operation and is not included as standard. LEOXZ lists Simagic Alpha Mini, Alpha and Alpha Ultimate, Simucube SC1/SC2, MOZA R12 and Asetek Direct Drive bases with the appropriate QR or adapter. Asetek requires an Invicta Quick Release Adapter. Fanatec DD1, DD2, CSL DD, DD Pro and DD+ are also listed, with a pre-1 May 2024 testing caveat.
Compatibility
Platform: Windows PC by USB or supported 2.4 GHz wireless operation. LEOXZ also documents a PS4/PS5 Fanatec mode and specifies the Wireless Kit for that console route.
Connection and ecosystem: 70 mm QR pattern; USB-GX12 cable supplied. Listed routes include Fanatec, Simagic, Simucube, MOZA R12 and Asetek.
Requirements: A suitable quick release is required for wheelbase mounting and is not included as standard. The Wireless Kit is optional for wireless PC use and required for the documented PS4/PS5 Fanatec mode.
Specifications
Diameter
295 mm
Display
4.3-inch IPS, 800 × 480, 60 fps
Front panel and paddles
3K carbon fibre
Paddle sensing
Non-contact Hall sensors
QR mounting pattern
70 mm
Wired connection
Industrial USB-GX12
Wireless
Optional 2.4 GHz Wireless Kit
Software
SimHub + SimBridge
What's in the box?
- LEOXZ XF1 Ultimate Steering Wheel in the selected paddle configuration
- USB-GX12 cable
- Custom stickers and nylon tweezers
- Paddle spacers and matching M3 × 14 bolts for the selected paddle configuration
Frequently asked questions
What do I need to use the LEOXZ XF1 Ultimate with a Fanatec QR2 wheel base?
Use the LEOXZ QR2 in LINK configuration and a Fanatec QR2 Base-Side Type-M or Type-C. Wired PC use can use the supplied USB-GX12 cable. The Wireless Kit is only needed for wireless operation and the documented Fanatec console mode.
Does the XF1 Ultimate include a quick release?
No. LEOXZ lists the quick release as an option, so select the version that matches your wheelbase ecosystem.
Is the Wireless Kit required for normal PC use?
No. Wired PC operation is available through USB-GX12. The Wireless Kit adds 2.4 GHz wireless operation.
Can I use the XF1 Ultimate with a Simagic Alpha Ultimate?
Yes. LEOXZ lists the Alpha Ultimate, Alpha and Alpha Mini when the appropriate LEOXZ Simagic quick-release route is used.

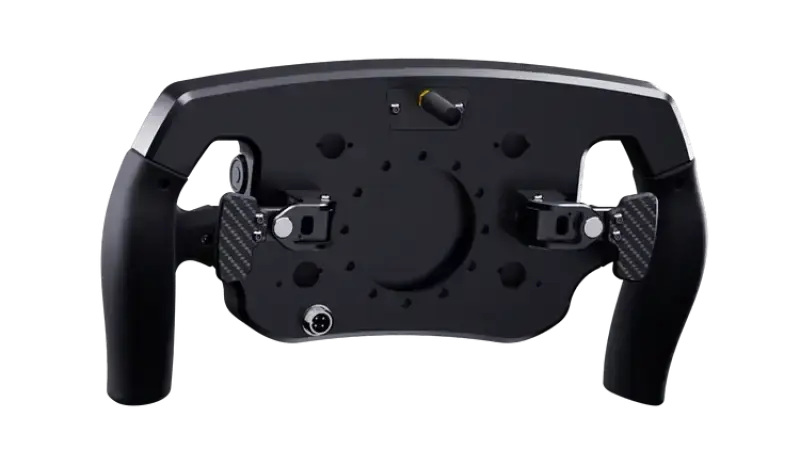

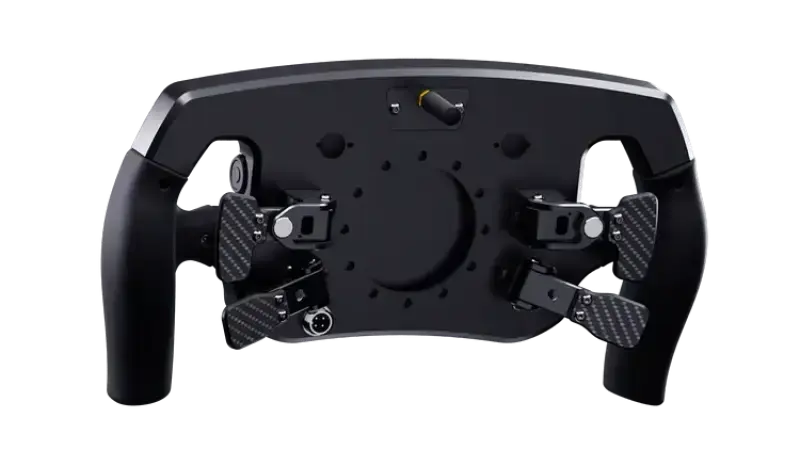

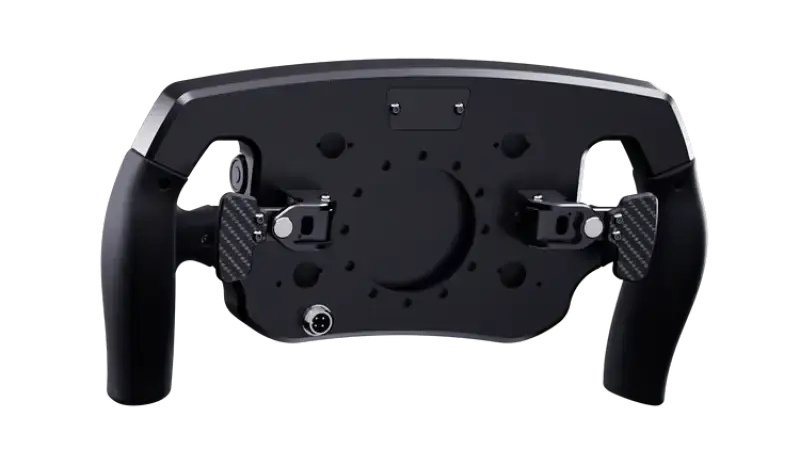

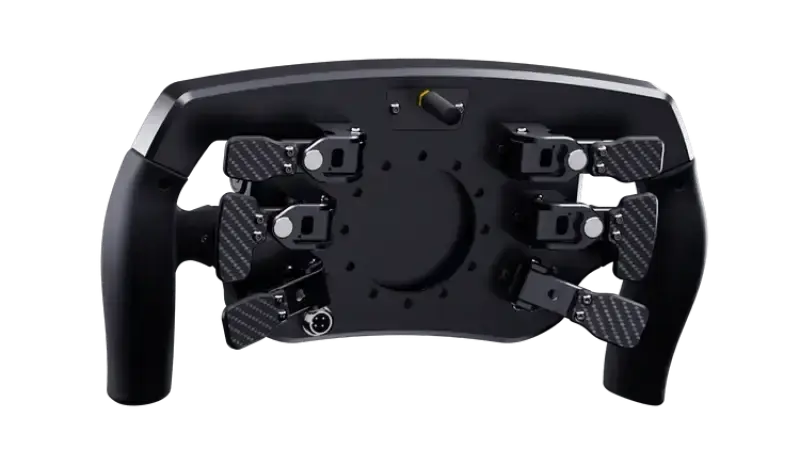

Which paddle configurations are available?

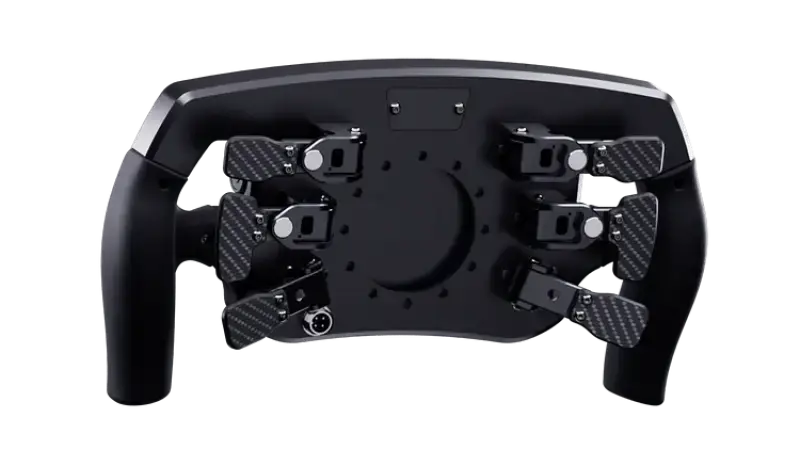

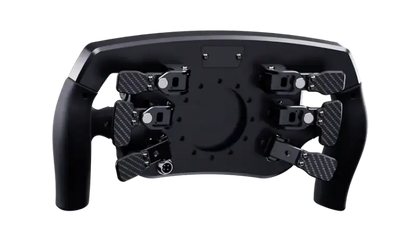

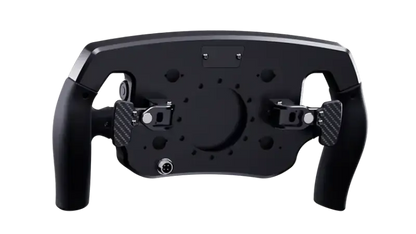

LEOXZ offers shifter-only, shifter-and-clutch, and shifter-clutch-option configurations for the XF1 Ultimate.
