SimXPro X80 GT kokpit pro závodní simulátory

• Base Frame Dimensions: approx. 1250 × 660 × 800 mm
• Width Between Upright Profiles: 580 mm
• Weight: approx. 32 kg


Aluminum Profiles Included:

• 2 × 1200 mm – 4080
• 2 × 750 mm – 4080
• 1 × 580 mm – 4080
• 2 × 500 mm – 4080
• 2 × 500 mm – 4040


Compatible With:

• All Fanatec wheelbases
• All Thrustmaster wheelbases
• All Logitech wheelbases
• All other major brands

Not Included: Mounting bolts for attaching wheels (brand-specific)

Optional Upgrades:

• Profile pedal deck
• Front wheel mounts
• Adjustable feet
• Simple or extended shifter mounting profile

To mount a seat on any SimXPro® chassis, you will need either the SimXPro® Universal Seat Mount or the SimXPro® Extended Universal Seat Mount (provides a wider tilt adjustment range). These brackets are not included with the cockpit and must be purchased separately.

SimXPro® Universal Seat Mounts are compatible with:

• SimXPro® GT Seat,
• SimXPro® GTR Seat,
• SimXPro® GT XL Seat,
• All sim-racing and motorsport seats with side-mount attachment points

For seats with bottom-mount attachment:

• they can be installed using 4× corner brackets to mount the seat flat onto the chassis profile
• these extra brackets are not included with the rigs
• exception: SimXPro GT-RS®, which includes an extended hardware kit supporting bottom-mount seat installation"

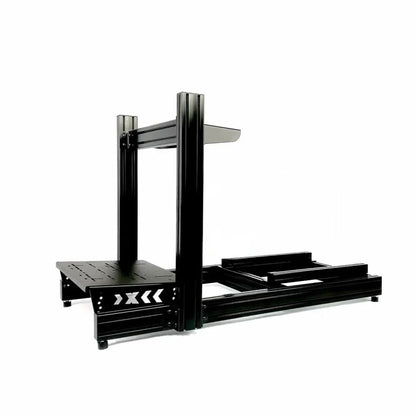

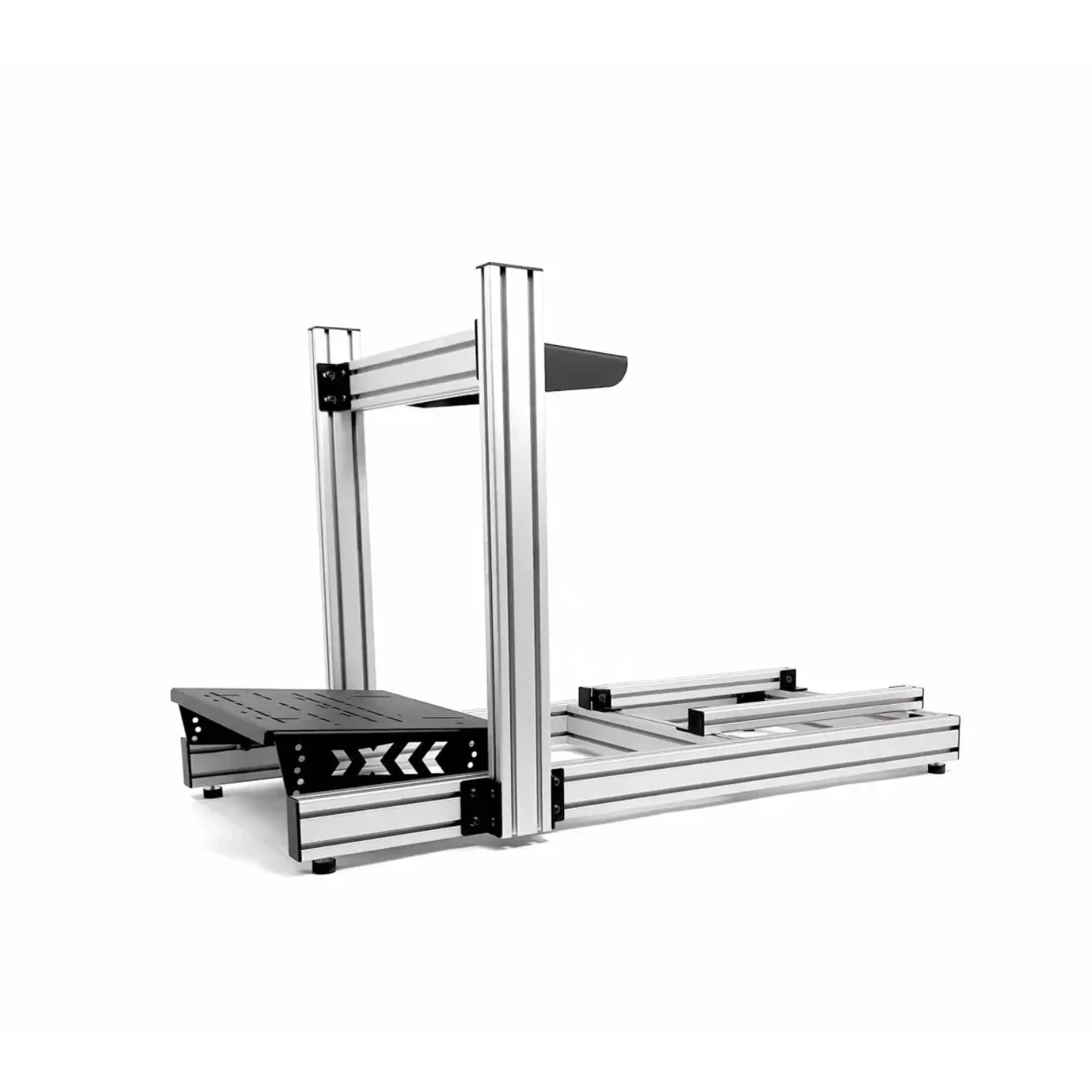

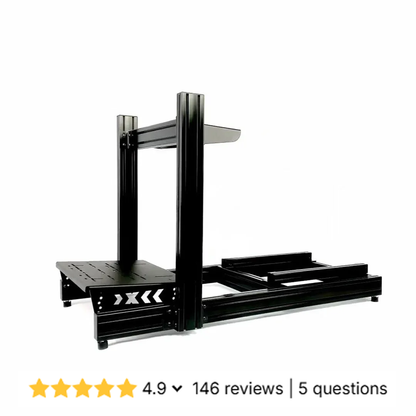

The X80 base frame is built entirely from premium European 4080 aluminum profiles, ensuring exceptional strength and rigidity. While many rigs use lower quality aluminum, SimXPro® selects only high-density, superior-finish profiles to guarantee long-term durability and eliminate flex - even under Direct Drive forces.

All profiles include full-length slots, enabling flexible accessory placement and unlimited adjustment possibilities. With precise machining and a scratch-resistant black coating, the X80 not only performs like a premium chassis - it looks like one too.

Designed for easy assembly, the chassis still benefits from proper tightening and the use of two people during setup to ensure perfect alignment and maximum rigidity.

The X80 comes equipped with the Universal Wheeldeck, engineered for versatility and strength.

Key Features:

• 3 mm hardened steel construction
• Brake-pressed for increased stiffness
• Matte black textured powder-coated finish
• Adjustable tilt, angle, height, and front-back positioning
• Compatible with all major wheelbases (Fanatec, Logitech, Thrustmaster, etc.)


For advanced setups, you can upgrade to alternative wheel mounts from the options menu, ensuring compatibility with future wheelbase upgrades - including high-torque Direct Drive systems.

Here are all compatible wheel-mount options - check them out to find the perfect match for your wheel base!

• SimXPro® Universal DD Front Mount (8mm hardened steel)
• SimXPro® Extended Universal DD Front Mount (8 and 5 mm hardened steel combined with an aluminium profile)
• Universal Flat wheeldeck (6 mm hardened steel) - Compatible with Fanatec, Logitech, Thrustmaster, and similar bases
• Fanatec CSL Elite Front Mount (with support bar)
• Fanatec DD1 / DD2 Side-to-Front Mount (8 mm hardened steel)

Each wheel mount is engineered for maximum strength and adjustability, ensuring a stable, flex-free driving position.

The Universal Pedal Plate included with the X80 fits all common consumer pedalsets such as Fanatec, Thrustmaster, Logitech, and more. Both height and angle are fully adjustable, allowing you to position your pedals exactly as you prefer.

For stronger load-cell or hydraulic pedal sets, you can upgrade to the SimXPro® Profile Pedal Deck (+€20). This upgraded deck uses aluminum profiles, allowing you to create the exact mounting pattern you need using T-nuts in the profile channels.

Notes:

• The profile pedal deck does not support bottom-mount pedals.
• Brackets and profiles are finished in matte black textured powder coating.


Fully adjustable in height, tilt, and orientation (can be mounted upside-down).

The SimXPro® X80 is the only cockpit in the range that does not include shifter profiles by default, due to customer demand for a cleaner minimal configuration.

Optional shifter mounting upgrades include:

• Simple shifter profile mount
• Extended shifter profile mount (for added reach and compatibility)


Each option allows flexible positioning thanks to the full-slot profile system, ensuring compatibility with most shifters and handbrakes on the market.

The SimXPro® X80 strikes the perfect balance between affordability, strength, and upgradeability. Whether you're using entry-level gear or planning to step into the world of Direct Drive, the X80 provides a stable and future-proof foundation.

Why choose the SimXPro® X80?

• Built from high-density European aluminum
• Supports Direct Drive wheelbases
• Fully modular and future-proof
• Fast, flexible, tool-friendly adjustability
• Premium finish with no sharp edges or low-grade materials
• One of the easiest rigs to assemble


Thanks to slide-based brackets and 360° slot access, every part of the cockpit can be repositioned to your exact ergonomic needs - from pedals to wheelbase and shifter placement.

Whether you are a beginner or a competitive sim racer, the X80 gives you the performance, adjustability, and reliability required to push your driving experience to the next level.
