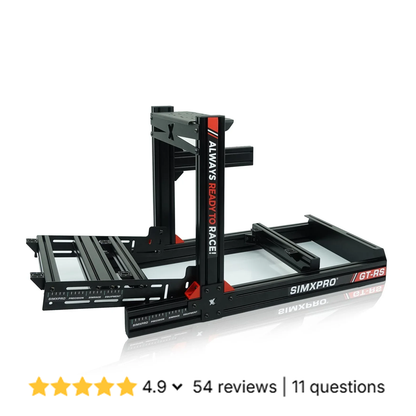

SimXPro GT-RS Cockpit GT Sim Racing

• Construction: Premium high-density aluminum + hardened steel brackets
• Weight: approx. 32 kg
• Base Frame Dimensions: approx. 1250 × 500 × 620 mm
• Rigidity: Flex-free design optimized for high-torque systems
• Finish: Black powder-coated aluminum profiles + powder-coated steel
• Designed For: Long-term use, future upgrades, and industry-standard compatibility
• Ecosystem: Fully modular and expandable GT-RS platform

Compatibility:

• All Direct Drive wheelbases (Fanatec DD / Moza / Simagic / Asetek / VRS / etc.)
• All loadcell and hydraulic pedal systems
• Most major sim racing peripherals

To mount a seat on any SimXPro chassis, you will need either the SimXPro Universal Seat Mount or the SimXPro Extended Universal Seat Mount (provides a wider tilt adjustment range). These brackets are not included with the cockpit and must be purchased separately.

SimXPro Universal Seat Mounts are compatible with:

• SimXPro GT Seat,
• SimXPro GTR Seat,
• SimXPro GT XL Seat,
• All sim-racing and motorsport seats with side-mount attachment points

For seats with bottom-mount attachment:

• they can be installed using 4× corner brackets to mount the seat flat onto the chassis profile
• these extra brackets are not included with the rigs

exception: SimXPro GT-RS, which includes an extended hardware kit supporting bottom-mount seat installation"

The GT-RS base frame sets a new benchmark in structural quality for sim racing cockpits. Built from high-grade, dense aluminum profiles reinforced with hardened steel brackets, it delivers outstanding stability even under the heaviest load cell braking and strongest Direct Drive forces.

Every connection point is engineered for maximum stiffness. Combined with a fully modular profile system, the GT-RS offers limitless adjustability while maintaining a rock-solid foundation.

The GT-RS Eco-System ensures long-term compatibility, meaning your cockpit will evolve seamlessly alongside new products and industry standards. This is the last base frame you will ever need.

GT-RS comes equipped with the SimXPro Universal wheel plate, engineered for versatility and strength.

Key Features:

• 3 mm hardened steel construction
• Brake-pressed for increased stiffness
• Matte black textured powder-coated finish
• Adjustable tilt, angle, height, and front-back positioning
• Compatible with all major wheelbases (Fanatec, Logitech, Thrustmaster, Moza, etc.)

For advanced Direct Drive setups that use a front or side-mounting pattern, you’ll need an additional mounting bracket:

SimXPro GT-RS Front Mounting Bracket – designed specifically for Direct Drive bases with a front-mount pattern. Made from 3 mm hardened steel for maximum strength and durability, and fully adjustable for precise positioning.

The GT-RS profile pedal mounting system is built to support heavy-duty loadcell and hydraulic pedals, delivering a fully stable braking platform with no flex.

Features:

• Ultra-rigid profile-based pedal deck
• Full adjustability for angle, height, and distance
• Designed for high-force braking systems
• Compatible with all major pedal brands
• Built to maintain perfect stability during intense braking

Whether you're heel-and-toeing or applying 100+ kg brake pressure, the GT-RS pedal section is engineered to respond instantly and consistently.

The GT-RS includes a high-strength shifter/handbrake mounting system designed to accommodate all major devices.

Key Features:

• Hardened steel mounting bracketry
• Fully adjustable positioning
• Compatible with shifters, handbrakes, and combo setups
• Part of the modular GT-RS Eco-System
• Engineered for zero flex even with high-force sequential shifters


Placement can be adapted for GT, rally, drift, or endurance-style layouts with ease.

The SimXPro GT-RS is more than just a sim racing rig - it is a long-term platform engineered to remain at the top of the industry for years to come. Built from the highest-quality materials and designed with performance at its core, it gives competitive drivers everything they need to reach the next level.

Why choose the GT-RS?

• Built for Direct Drive & hydraulic pedal systems
• Flex-free performance under extreme forces
• Premium materials with industry-leading rigidity
• 10+ years of sim racing design experience
• Fully modular Eco-System for future upgrades
• Long-term durability and professional-grade stability
• Compatible with all major brands and future standards


From weekend racers to professional esports drivers, the GT-RS provides the stability, precision, and reliability needed for consistent performance. The future of sim racing starts here - and the GT-RS is ready.
