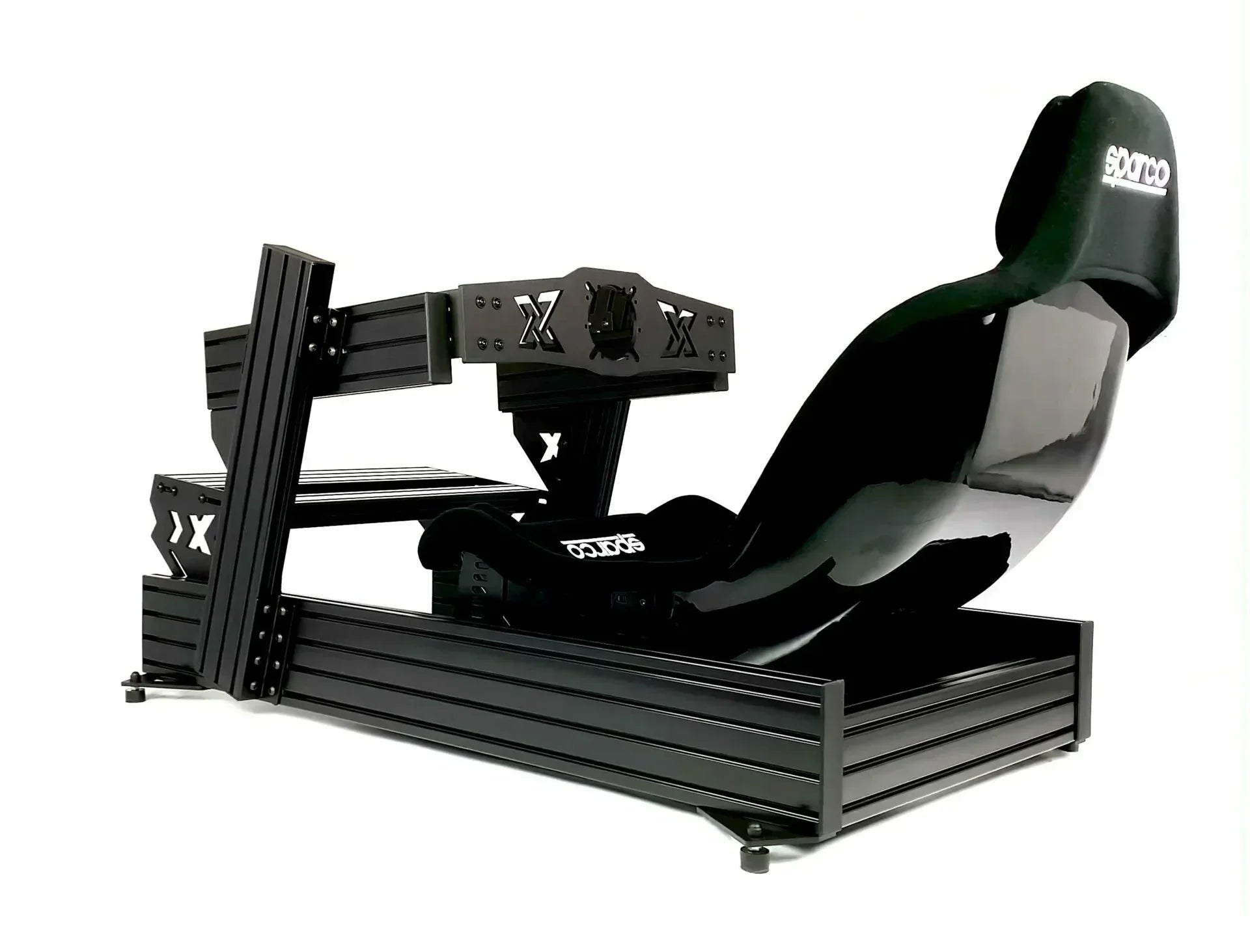

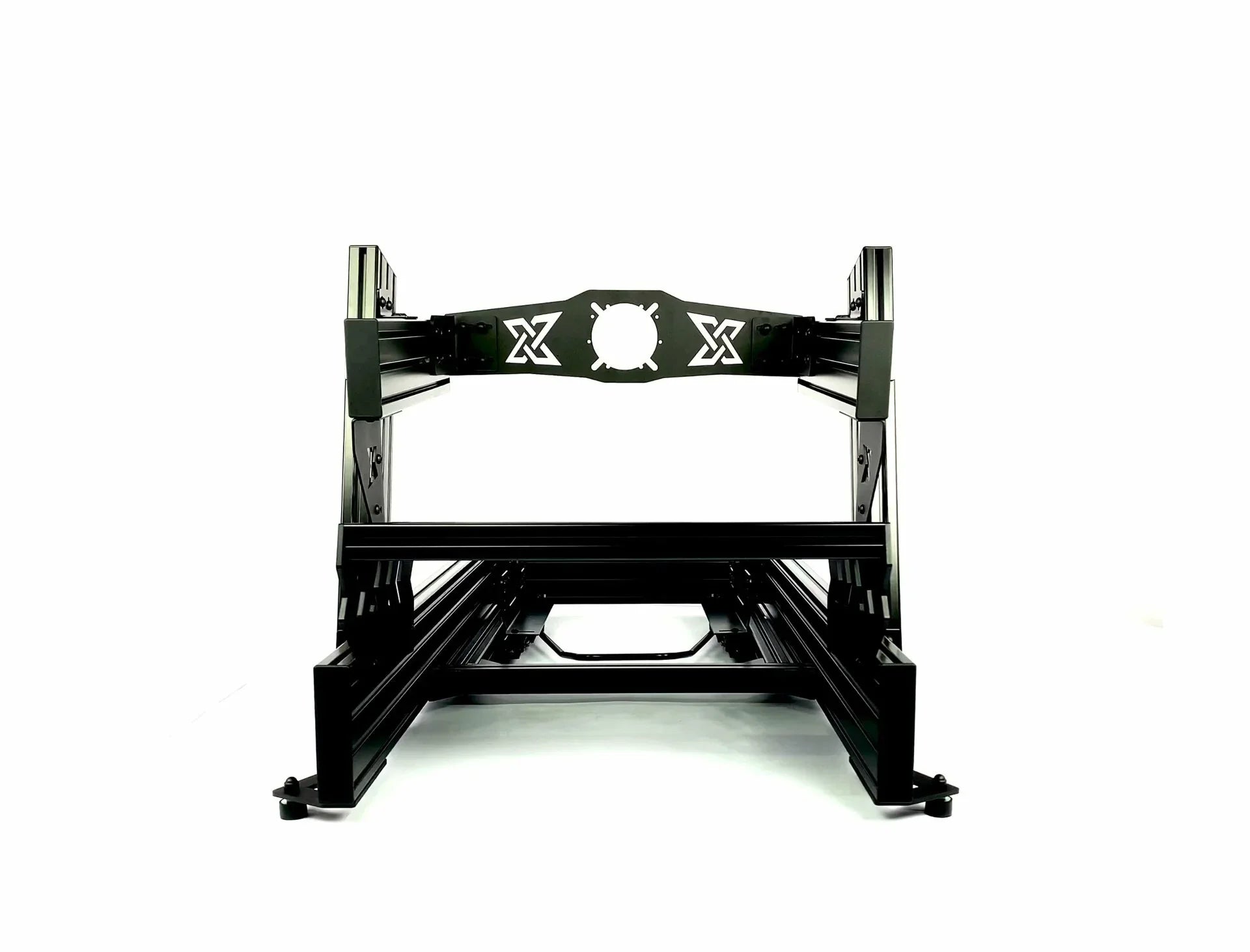

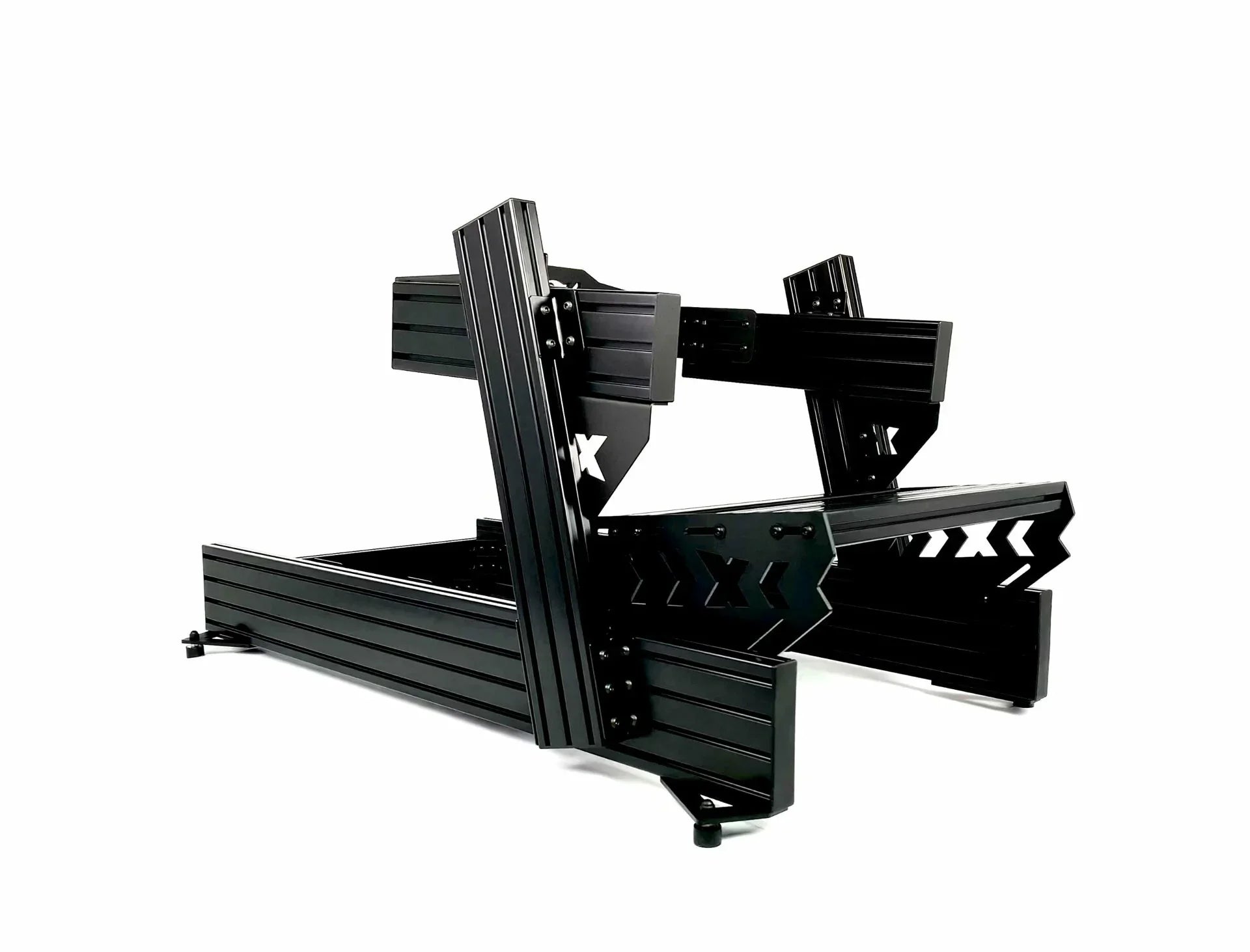

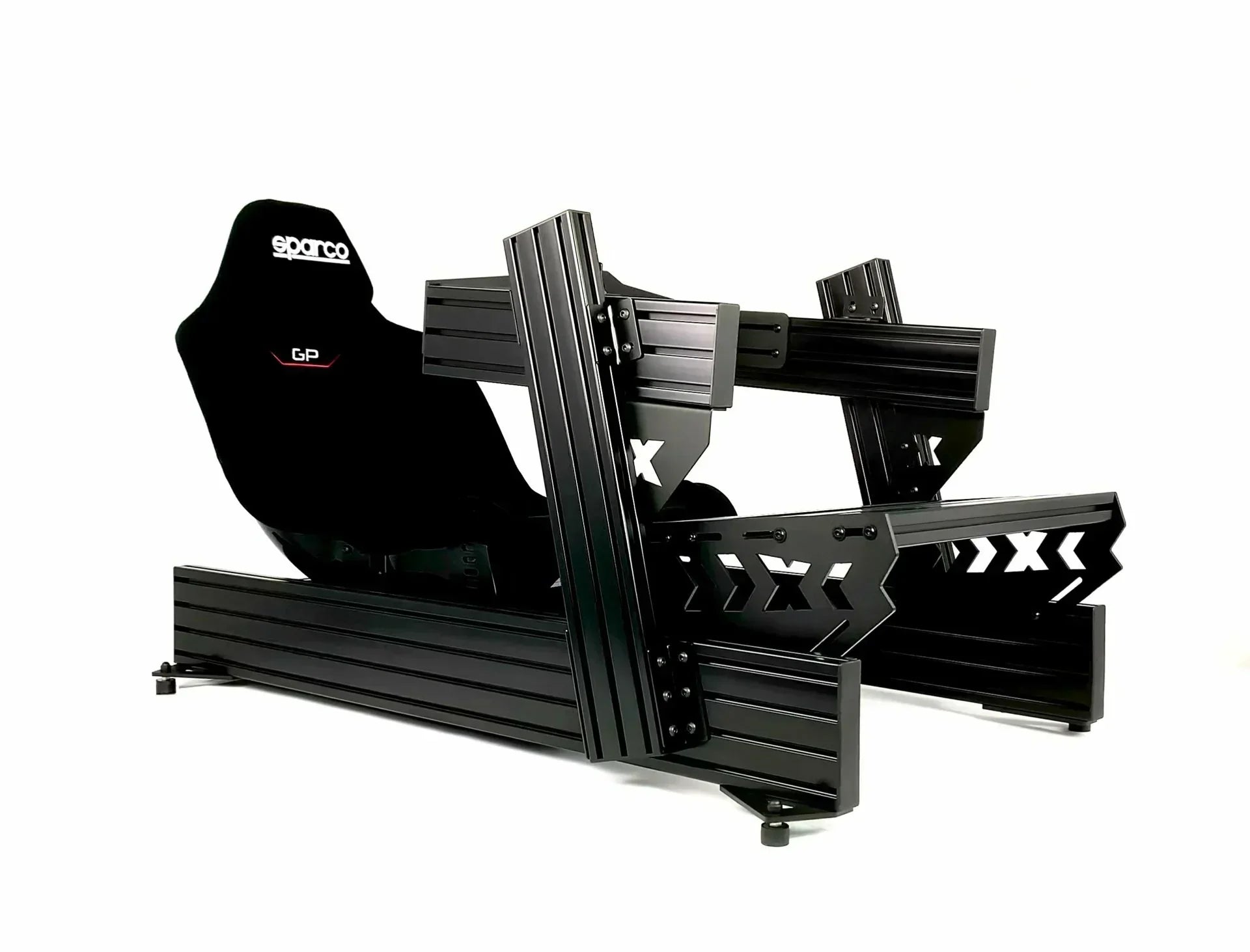

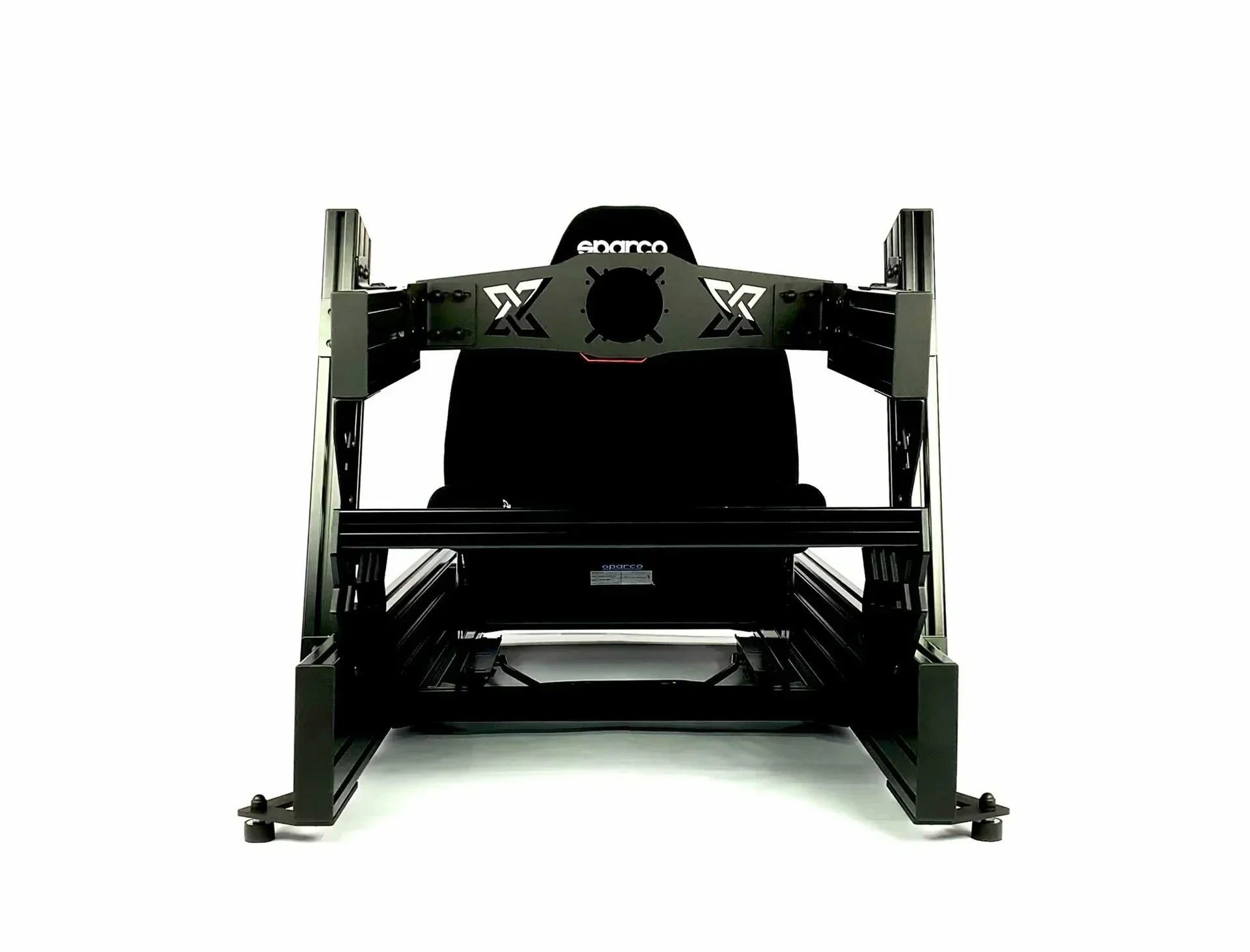

SimXPro XFR Formula Style Sim Racing cockpit

• Base Frame Dimensions: approx. 1350 × 740 × 820 mm
• Width Between Upright Profiles: 580 mm
• Footprint: approx. 1600 × 740 mm
• Weight: approx. 65 kg
• Finish: Satin Black powder coating
• Construction: High-density aluminum extrusion profiles


Wheelbase Compatibility (Universal Front Mount):

• Bodnar 50 Series
• Lenze MCS12 Series
• MiGe 130ST (Small & Big)
• Simagic Alpha Mini / Alpha / Alpha Ultimate
• SimuCube 2 Sport / Pro / Ultimate
• VRS DirectForce Pro
• Moza R16 / R21
• AccuForce V2 Pro


Pedal Compatibility:

• All loadcell pedal sets
• All hydraulic pedal systems

To mount a seat on any SimXPro chassis, you will need either the SimXPro Universal Seat Mount or the SimXPro Extended Universal Seat Mount (provides a wider tilt adjustment range). These brackets are not included with the cockpit and must be purchased separately.

SimXPro Universal Seat Mounts are compatible with:

• SimXPro GT Seat,
• SimXPro GTR Seat,
• SimXPro GT XL Seat,
• All sim-racing and motorsport seats with side-mount attachment points

For seats with bottom-mount attachment:

• they can be installed using 4× corner brackets to mount the seat flat onto the chassis profile
• these extra brackets are not included with the rigs
• exception: SimXPro GT-RS, which includes an extended hardware kit supporting bottom-mount seat installation"

The SimXPro XFR chassis is designed from the ground up to replicate the exact feel and ergonomics of a real Formula car. Built from premium aluminum profiles and finished in a durable Satin Black powder coat, it delivers exceptional rigidity combined with a sleek, high-end appearance.

With the optional Extended Seat Mounts, you can mount and tilt any side-mounted seat - from carbon Formula shells to fiberglass GT seats - achieving the precise reclined driving position that suits your body and racing style. Both the seat and pedal positions are fully adjustable, enabling a perfect match for F1, Formula 2, Formula 3, or custom single-seater ergonomics.

As part of the SimXPro ecosystem, the XFR is fully compatible with all mounts, upgrades, and accessories from the entire product line, ensuring limitless customization and future-proof expansion.

The XFR includes the Universal Front Wheelmount, machined from heavy-duty steel to support the strongest Direct Drive wheelbases on the market.

Compatible Systems:

• Bodnar 50 Series
• Lenze MCS12
• MiGe 130ST (Small & Big)
• Simagic Alpha (Mini / Alpha / Ultimate)
• SimuCube 2 Sport, Pro, Ultimate
• VRS DirectForce Pro
• Moza R16 / R21
• AccuForce V2 Pro


The mount provides a completely flex-free driving experience and can be fine-tuned in height, angle, and distance to achieve perfect Formula steering alignment - wheelbase at shoulder height, shaft point toward the neck, and low visibility of the toes behind the wheelbase.

Here are all compatible wheel-mount options - check them out to find the perfect match for your wheel base!

• SimXPro Extended Universal DD Front Mount (8 and 5 mm hardened steel combined with an aluminium profile)
• Universal Flat wheeldeck (6 mm hardened steel) - Compatible with Fanatec, Logitech, Thrustmaster, and similar bases
• Fanatec CSL DD PRO / CS DD Front Mount (with support bar)
• Fanatec DD1 / DD2 Side-to-Front Mount (8 mm hardened steel)

Each wheel mount is engineered for maximum strength and adjustability, ensuring a stable, flex-free driving position.

The Extended Profile Pedal Tray included with the XFR is engineered for high-end loadcell and hydraulic pedals and offers extreme adjustability.

Key Features:

• Greater height range than standard trays
• Wide angle adjustment for Formula driving ergonomics
• Supports heavy loadcell and hydraulic brake systems
• Fully adjustable: height, angle, fore/aft, upside-down mounting
• Black powder-coated aluminum and hardened steel
• Flex-free braking even under extreme force


This pedal tray allows for precise fine-tuning to match your exact Formula-style foot position while maintaining maximum stability.

Formula rigs rarely use a traditional side shifter, but the optional SimXPro Shifter-handbrake mount XRS80 provides multiple accessory mounting points suitable for:

• Shifters
• Handbrakes
• Button boxes
• Small accessories or telemetry modules


The modular slot system allows placement on either side of the cockpit with total adjustability.

With the XFR’s extreme adjustability, you can tune your cockpit to match professional Formula ergonomics with precision.

The SimXPro XFR is built for sim racers who want the closest possible Formula experience - combining elite adjustability, Direct Drive strength, and future-proof modularity in a single, uncompromising chassis.

Dialing in the perfect Formula position is essential for comfort and performance. Here are recommended guidelines to achieve the proper single-seater posture:

• Legs should be almost fully extended at maximum braking - slightly bent, never locked
• Knees positioned behind the wheelbase
• Wheelbase set at shoulder height, with the shaft pointing toward your neck or chin
• Toes should be on the edge of visibility behind the wheelbase
• Seat is the foundation: weight must be evenly distributed from legs to neck
• Adjust in this order: Seat → Wheel → Pedals → Monitors
