MOZA MTQ Throttle Quadrant
AS014
Procesamiento del pedido 0-2 días hábiles
Envío gratuito a partir de € 100,-
2-Year Warranty

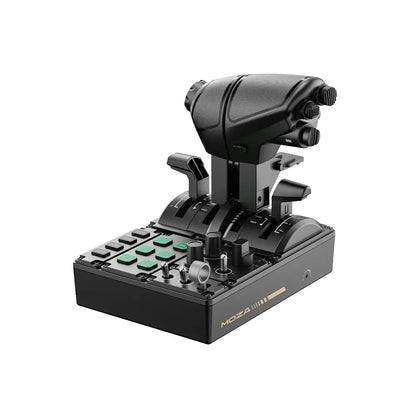

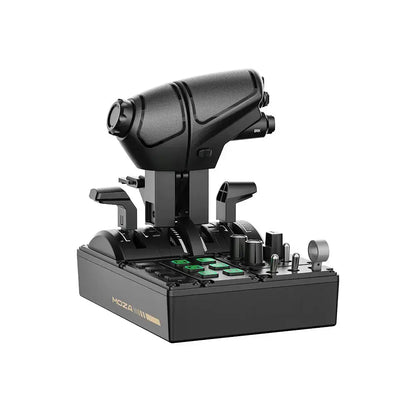

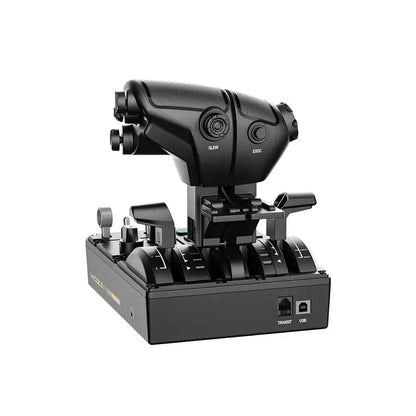

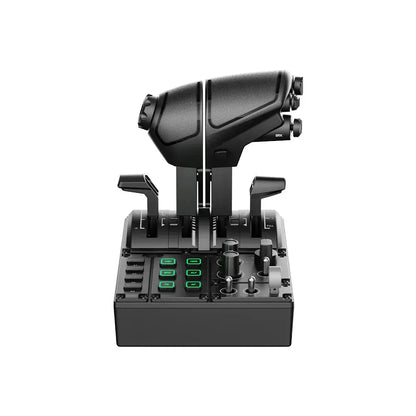

The MOZA MTQ Throttle Quadrant is a modular engine and systems control unit for Windows PC flight simulation. Four independent axes support dual-engine throttles, speedbrake and flap control, while 23 physical inputs provide direct access to aircraft systems. The standard package includes TQF fighter-style levers; optional Airbus and Boeing modules change the lever geometry and detent behaviour.
Why choose this product?
- Four independent axes and adjustable mechanical or virtual detents support precise throttle, speedbrake and flap control.
- Twenty-three physical controls, six telemetry-responsive RGB buttons and interchangeable lever modules adapt the unit to multiple aircraft types.
Product details
Axes, detents and standard lever module
The MTQ provides four independent axes with per-axis adjustable resistance. The included TQF fighter-style module supports HOTAS operation and afterburner detents. Mechanical stops and virtual button detents can change automatically when a supported lever module is installed and calibrated in MOZA Cockpit.
Control panel and telemetry
The integrated panel includes ten multifunction buttons, three rotary knobs, seventeen toggle switches and a dedicated landing-gear lever. Six buttons provide RGB backlighting with 16.7 million colours and supported telemetry response. These controls can be assigned to avionics, lights, autopilot functions, weapons or simulator macros.
Modules, connection and mounting
The included TQF levers can be replaced with the optional MOZA TQA Throttle Module for Airbus-style detents. MOZA also offers a TQB Boeing-style module, but that target remains unlinked because its public page could not be validated during this batch. The MTQ connects directly to a PC by USB or to the MOZA AB9 FFB Base through RJ11. An optional clamp or mounting plate is required for fixed installation.
Compatibility
Platform: Windows PC.
Connection: USB direct to PC or RJ11 to a compatible MOZA flight base.
Supported software environment: MOZA Cockpit and compatible titles including Microsoft Flight Simulator 2020/2024, X-Plane and DCS World.
Specifications
What's in the box?
- MOZA MTQ Throttle Quadrant
- TQF fighter-style throttle levers
- Data cable
- Wrench
- User manual
Frequently asked questions
Which throttle levers are included?
The standard MTQ package includes the TQF fighter-style lever module.
Can the lever style be changed?
Yes. Optional TQA Airbus-style and TQB Boeing-style modules can replace the included TQF levers.
How many axes and controls are available?
The unit provides four independent axes and 23 physical controls.
Can the MTQ connect without a MOZA flight base?
Yes. It can connect directly to a Windows PC by USB, or through RJ11 to a compatible MOZA flight base.
Is a desk clamp included?
No. Desktop or cockpit mounting uses an optional clamp or mounting plate.
