Caractéristiques du produit

Inclus dans la boîte

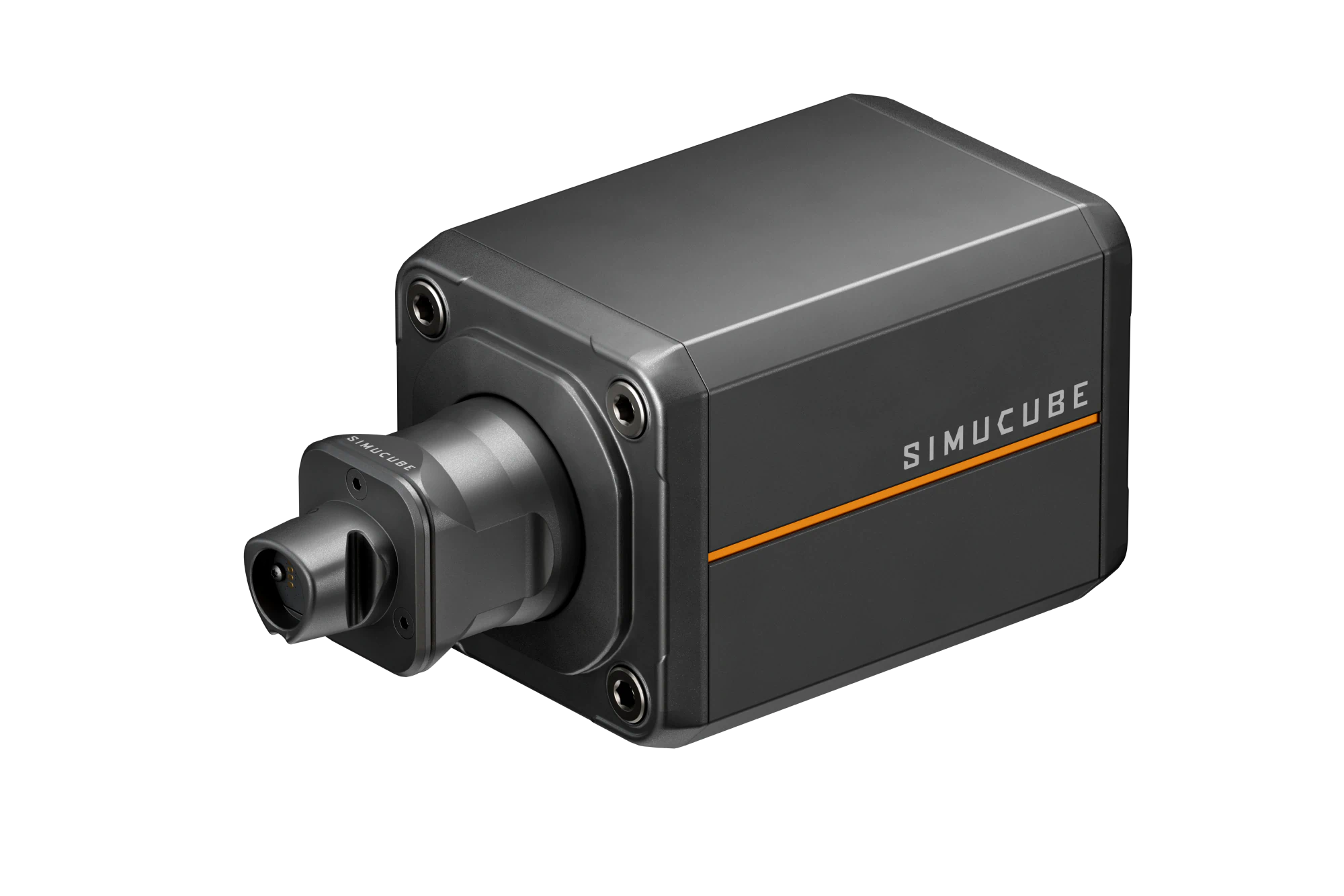

  • 1x Simucube 3 wheelbase
  • 1x Power adapter
  • 1x RJ45 Cable
  • 1x AC power cord
  • 1x Quick Start Guide
  • 1x Control box Fasteners kit
  • 4x M8 washer
  • 4x M6 washer
  • 2x M5 washer
  • 4x M8x35 allen head bolt
  • 4x M8x30 allen head bolt
  • 2x M5x30 allen head bolt
  • 4x M6x16 allen head bolt
  • 2x M5 t-slot nut 8mm slot
  • Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
Specifications

Specifications

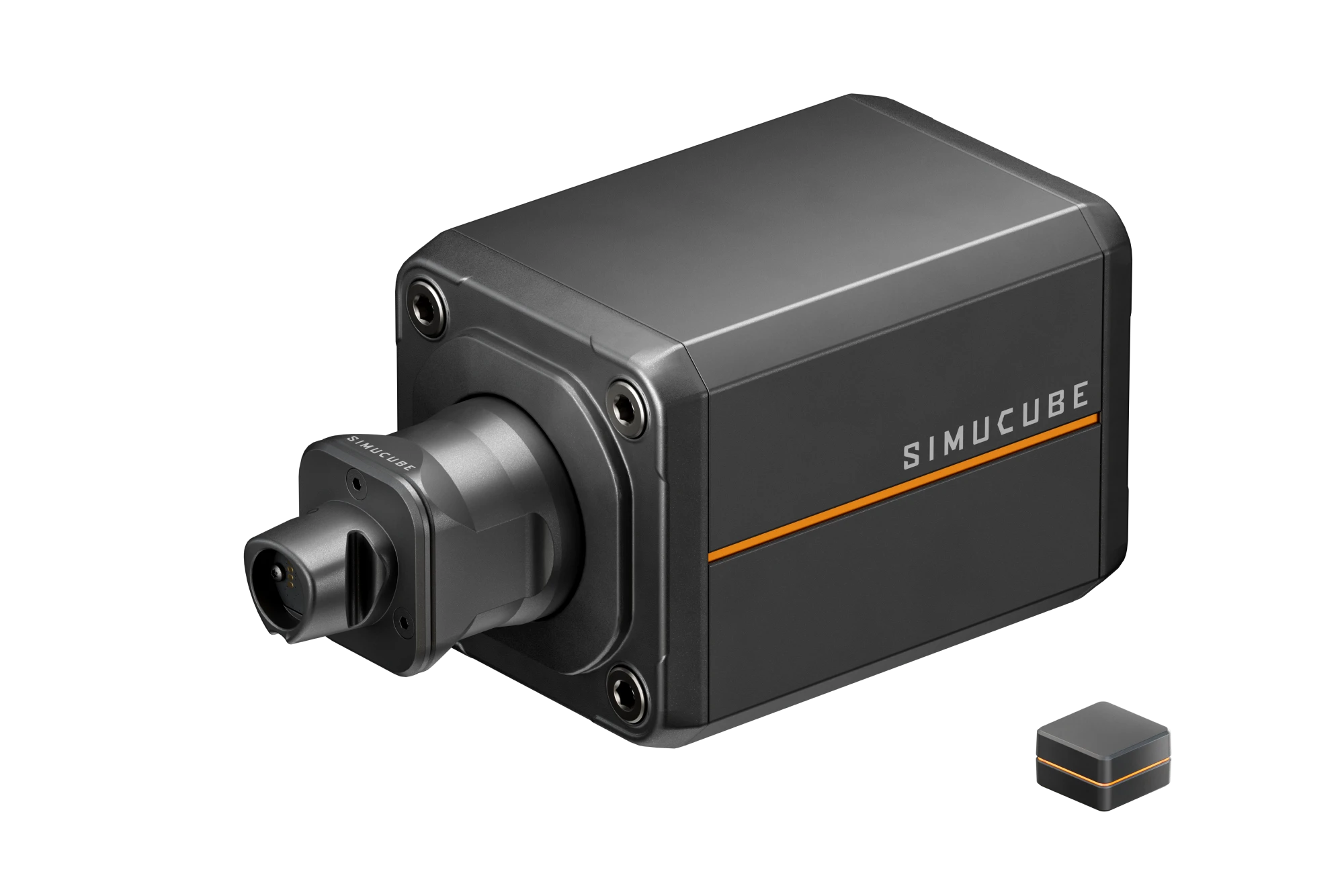

SPORT

  • Motor type: Direct drive optimized SPM motor
  • Max torque: 15 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 280 W
  • Warranty: 3 years

Dimensions

  • Wheel base dimensions: 135 x 135 x 278 mm
  • Package dimensions: 190 x 300 x 390 mm
  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 8.7 kg

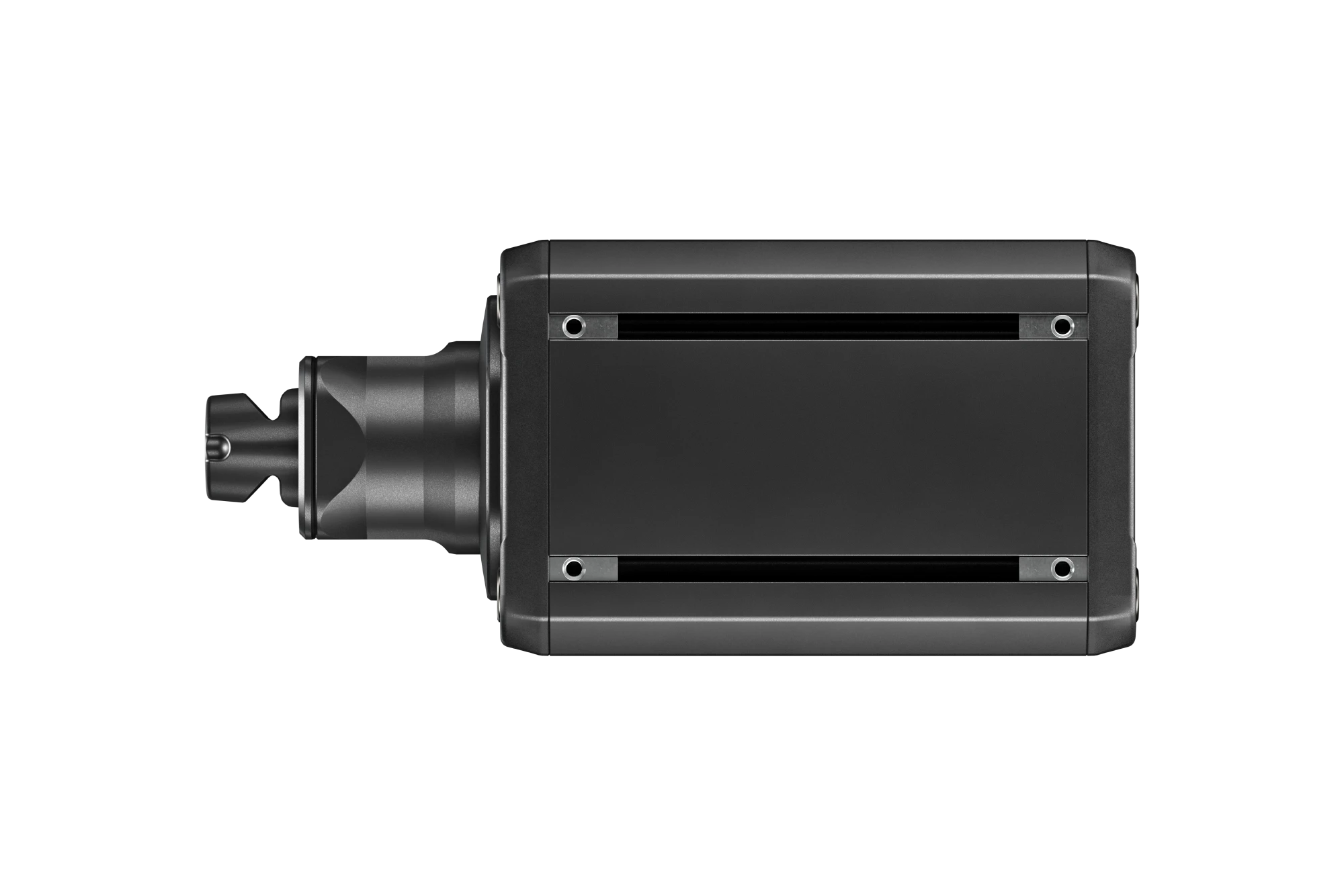

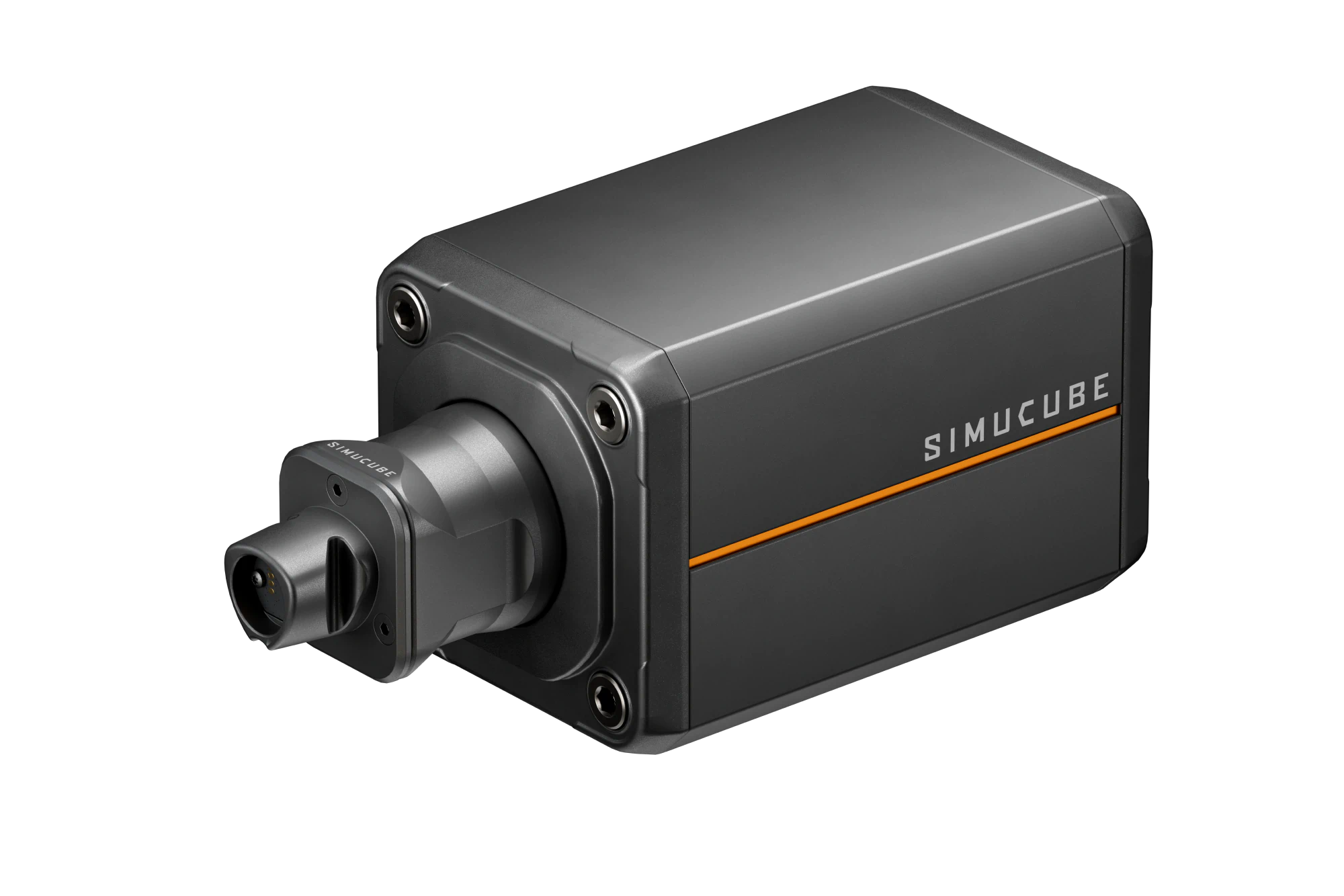

PRO

  • Motor type: High response speed, Direct drive optimized SPM motor
  • Max torque: 25 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 360 W (450 W peak)
  • Warranty: 3 years

Dimensions

  • Wheel base dimensions: 135 x 135 x 303 mm
  • Package dimensions: 190 x 300 x 390 mm
  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 11 kg

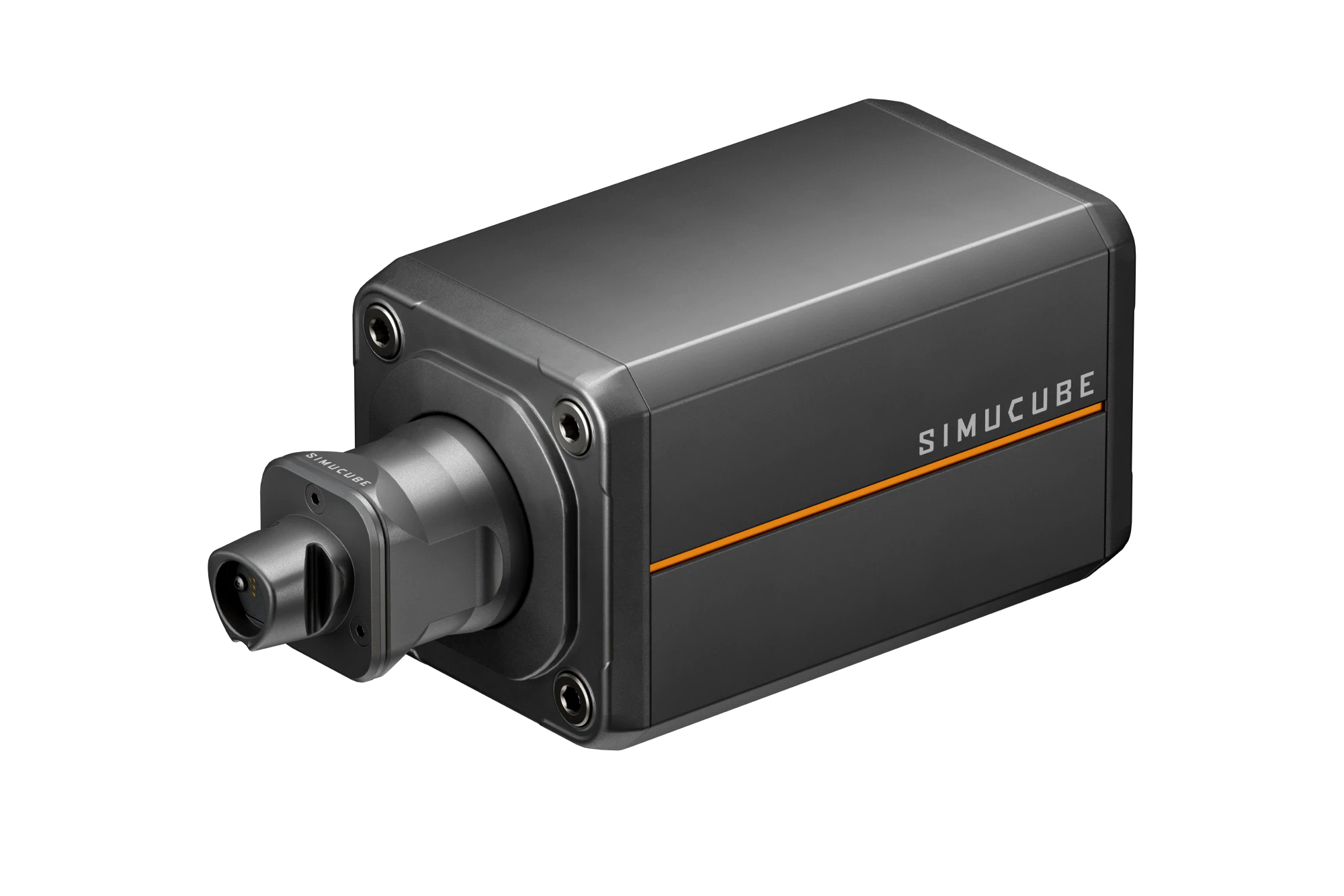

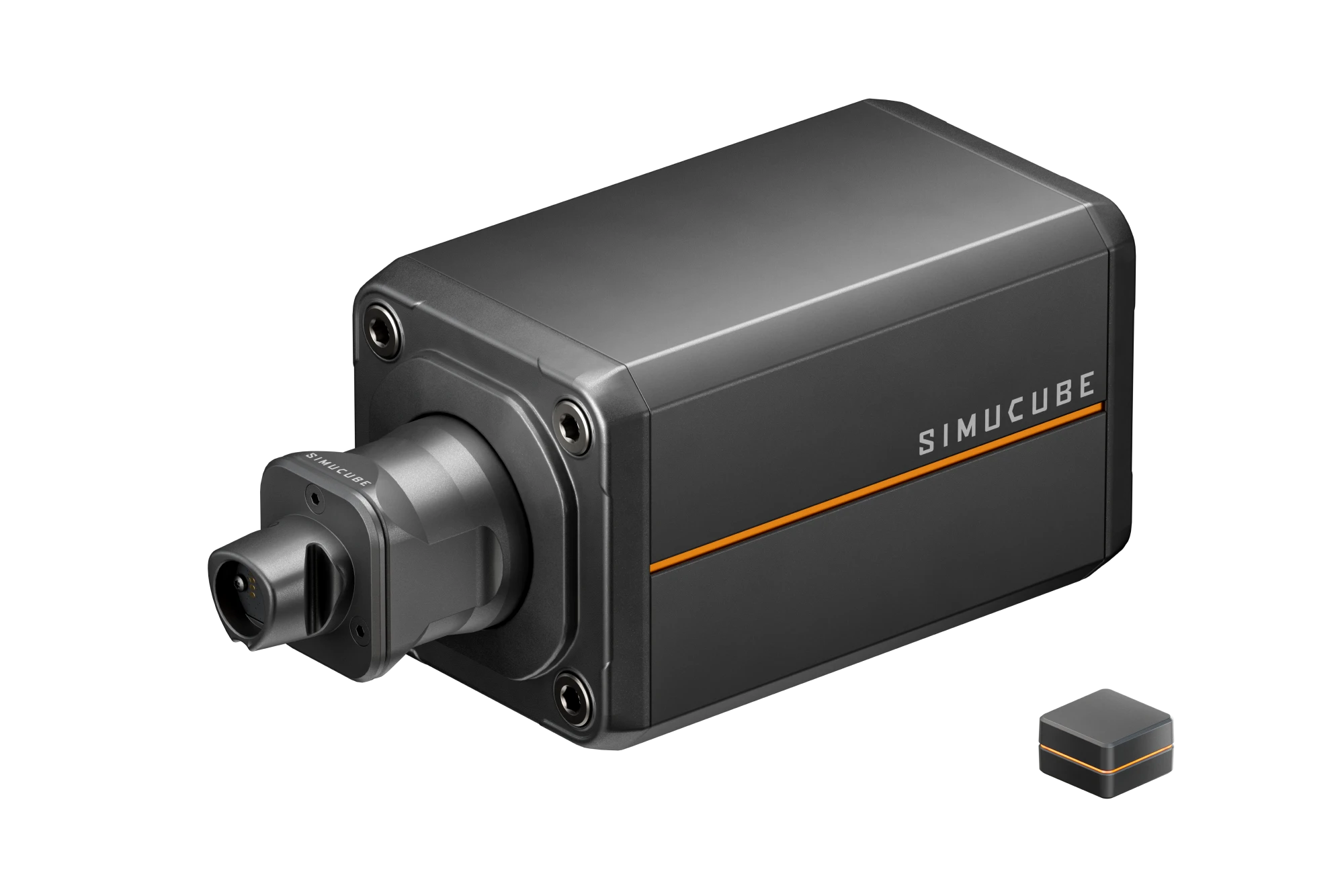

ULTIMATE

  • Motor type: IPM motor. Maximum response speed. Direct drive optimized IPM motor
  • Max torque: 35 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 360 W (450 W peak)
  • Warranty: 5 years

Dimensions

  • Wheel base dimensions: 135 x 135 x 323 mm
  • Package dimensions: 190 x 300 x 390 mm
  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 13 kg
Compatibilité SimXPro
  • Link Quick Release for Simucube 3
  • One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.
